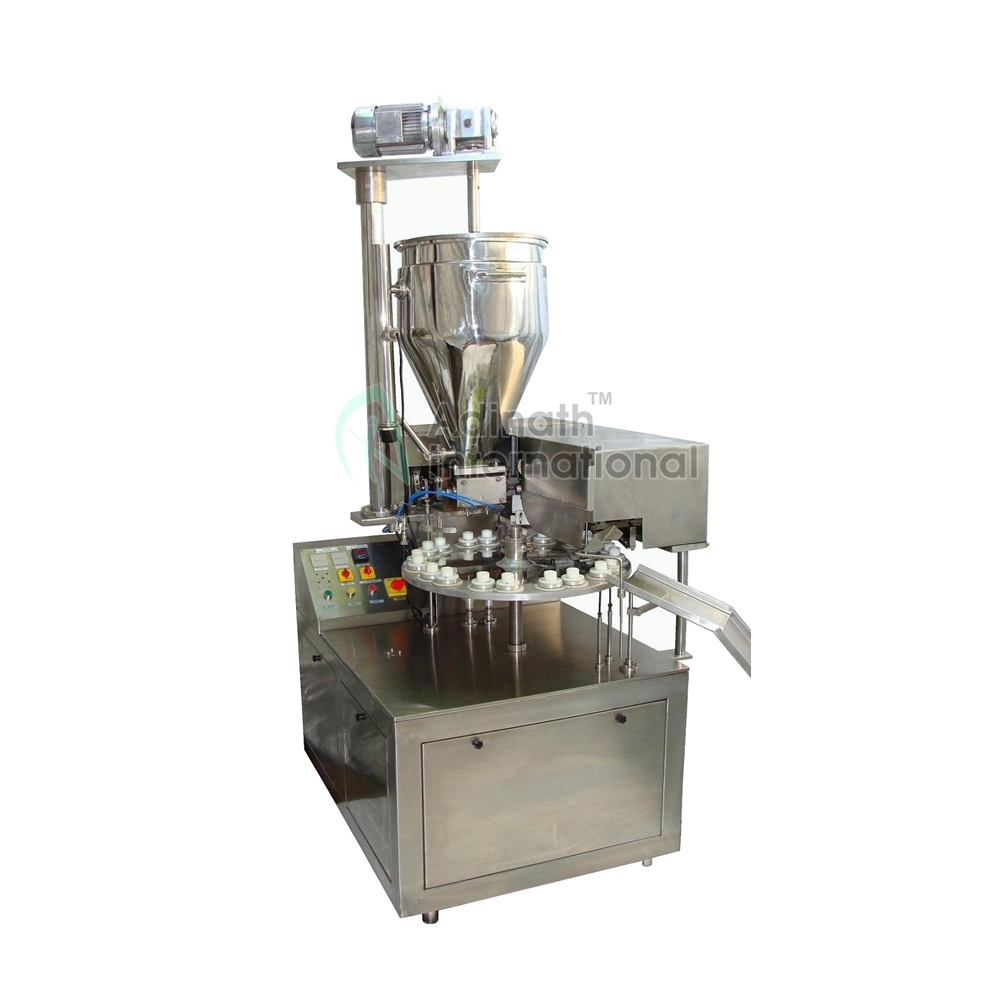

Aluminium Tube Filling Sealing Machine

Aluminium Tube Filling Sealing Machine

ATFM is very cost-effective aluminium tube Filler providing several features. The design of the machine is ergonomic, easy to handle and maintain for operators. It incorporates a full-size opening of the front guard with excellent access for maintenance and change-over and an improved Tube orientation system that guarantees even better accuracy. The machine is mainly mechanical and therefore, easy to operate and maintain.

ATFM is designed to fill and seal Aluminium /Plastic / Laminated tubes. The machine is suitable mainly for pharmaceutical, cosmetic and food industry. Machine can be used for filling of cream, ointment, gel, paste, balm and other similar viscous products by means of a volumetric dosing system.

Special Features of Tube Filling Sealing Machine:
  • Manually/Automatic Tube feeding
  • Rotary type & compact design
  • Filling range 5 gm to 50 gm
  • Filling accuracy ± 1 %
  • Correct & uniform filling
  • No tube No Filling System
  • For Aluminium Tube Crimping done by mechanical
  • Hot air system for tube sealing by leister heater & blower
  • Batch coding Number (Male or Female) also available
  • Tube cooling by water pump to circulate water outside tube portion for improve sealing quality.
  • Quick changeover from aluminium to lami tubes
  • No tails are occurred after filling time
  • All the contact parts in S.S. 304/316/316L as per your requirement
  • Production counter available on control panel to indicate number of tube filled
  • Lower maintenance requires
  • Automatic tube ejection.

Product Hopper: Stainless Steel 304, 50 litres capacity. {Water jacket with electrical heating and hot water circulation pump optional}
Product Agitator: Slow speed agitator for stirring of product in hopper as an option
Filling Nozzle: Fixed nozzle, with tube lifting at filling station – to lift up the tube so that nozzle gets inserted inside tube while filling. {Diving nozzle optional}. NO−TUBE−NO−FILL system incorporated.
Tail Cutting: By suck-back method (to prevent dripping after filling operation)
Tube Sealing: By double fold and crimping tool for aluminium tubes
Batch Code Embossing: In crimping jaws for Aluminium tubes
Tube Ejection: Automatic through a discharge chute for collection
Applications For: Cream, ointment, gel, paste, balm and other similar viscous products.

Technical Specification of Aliminium Tube Filler Sealer Machine:
Model No. ATFM-1 ATFM-2
No. of Filling Head Single Head Double Head
No. of Station 8 8
Production Output (Per Min) 25 - 30 tubes 45 - 60 tubes
Tube Diameter 12 to 50 mm
Tube Length 50 to 200 mm
Tube Loading System Manual /Automatic
Tube Orientation Manual/ Automatic
Filling Range 3 gms to 250 gms
Dosing Range
  • 3 to 30 ml
  • 30 to 100 ml
  • 100 to 250 ml
Compressed Air Requires 6 CFM 6 CFM
Net Weight 250 Kgs. 350 Kgs.
Gross Weight 375 Kgs. 475 Kgs.
* Specification offered is for reference purpose only.
