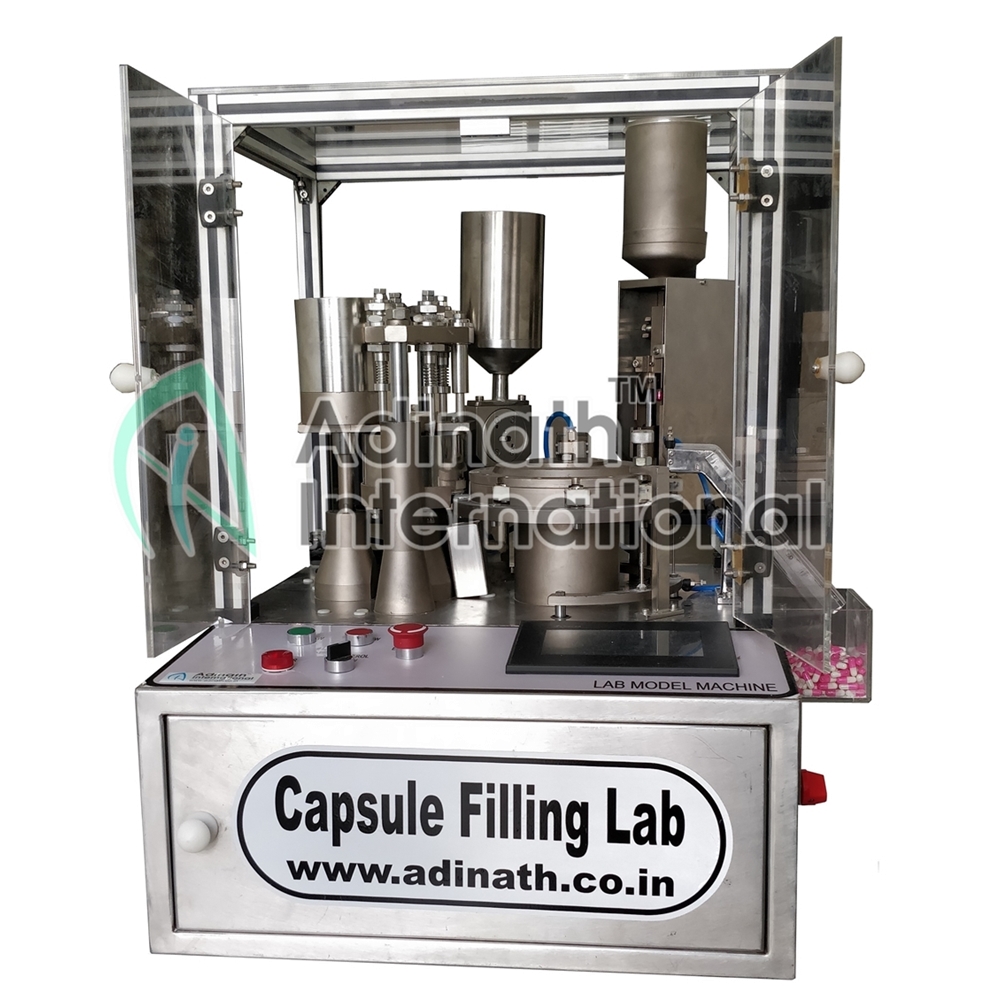

Automatic Capsule Filling Machine Lab Model

Automatic Capsule Filling Machine Lab Model

Automatic Capsule Filling Machine Lab Model is small R&D scale machine suitable for pilot batches operations. Machine is best suitable choice for research & development organization. Machine includes change parts for any one size of capsules, individual loading area with vacuum section & rectification. Capsules filled with powered by tamping mechanism. The machine is suitable for also drop tablets into capsules. Machine complies as per current GMP standards.
Our automatic range of capsule filling machines have been designed with our experience spanning close to two decades and the technology available with us on secure filling and closing of capsules.
The machine control is by means of a programmable logic controller with touch screen HMI with a very user friendly operable front end. Machine equipped with Venturi for vacuum generation hence no need for vacuum pump.

Special Features of Automatic Capsule Filler Lab Model
  • Compact GMP model
  • Machine is equipped with complete safety and protection devices, operation is steady and credible.
  • Compact, sturdy, covered with stainless steel panels, hood covered with acrylic guard.
  • Efficient capsule separation by means of vacuum.
  • Touch Screen HMI, featuring user friendly controls.
  • Quick Fill weight adjustments.
  • Tamping Mechanism for powder filling enables capsules to be filled with minimum weight variation.
  • Variable AC frequency drive for speed adjustment.
  • Simple to operate and easy to maintain.
  • Working of the machine is as follows capsule loading and separation, reject capsule disposal, powder (Bulk) filling, capsule closing (locking) and its ejection completely automatically.

Technical Specification of Lab Capsule Filler:
Model No. ACF LAB
Production Output Up to 2500 Capsules/hour
Capsule Size Combinations 00, 0, 1, 2, 3 & 4
Product Contact Parts AISI SS 316
Power Requirement 0.5 H.P.
Power Voltage 220 Volts, Single Phase, 50 Hertz
Compressed Air 12 to 15 CFM @ 6 Bar
Ambient Temperature/td> 21°C ±3°C
Overall Dimension 625mm (L) x 625mm (W) x 900mm (H)
Net Weight 150 kgs. (approx.)
Gross Weight 250 kgs. (approx.)
