Automatic Capsule Filling Machine

Automatic Capsule Filling Machine

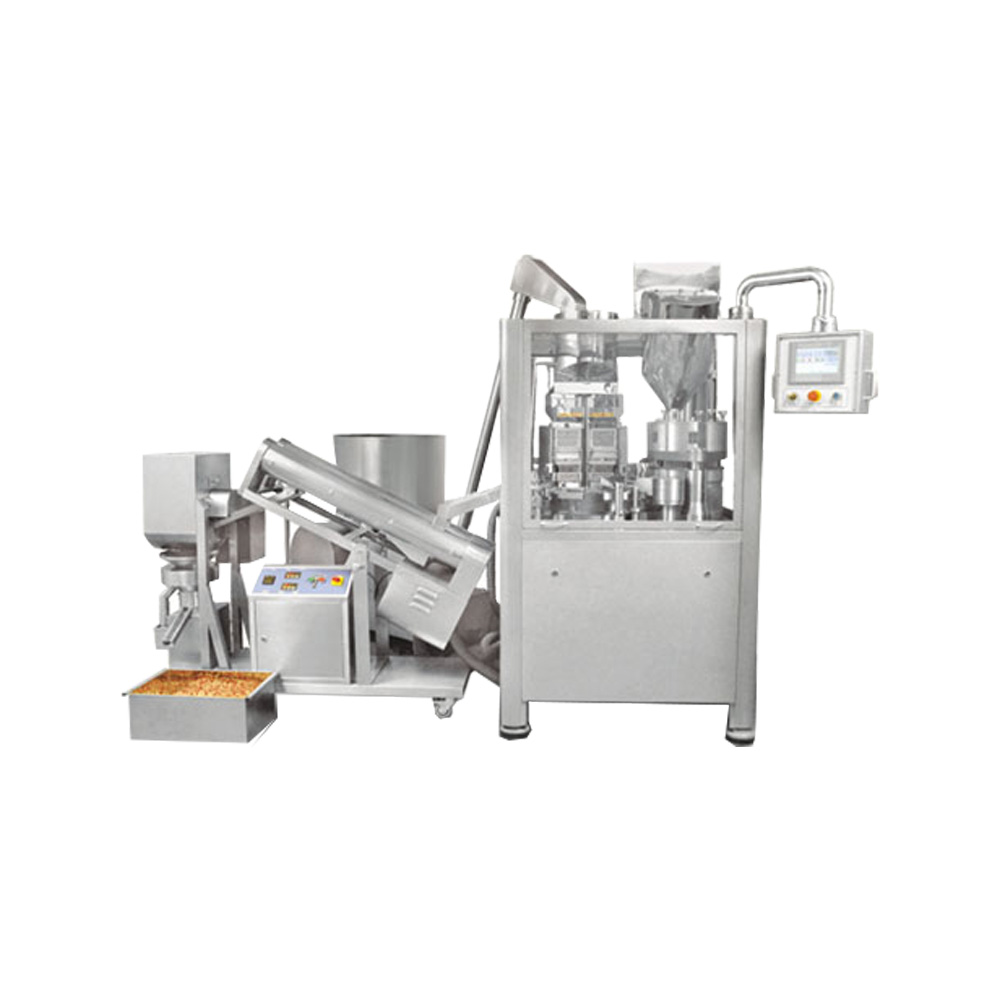

ACF Model Automatic Capsule Filling Machine that fills up to 90000 capsules per hour with variety of powder formulation. This machine model can accurately fill entire range of hard gelatin capsule sizes 00 to 4 with powder, pellets, and granules separately or in all type combination of Powder & Pallets with high accuracies. Automatic Capsule Filler uses the tamping pin technology to form a slug which is inserted in hard gelatin capsule for an enhanced accuracy.
Our automatic range of capsule filling machines have been designed with our experience spanning close to two decades and the technology available with us on secure filling and closing of capsules.
The machine control is by means of a programmable logic controller with touch enabled “Siemens” make human machine interface with a very user friendly operable front end.

Special Features of Automatic Capsule Filler Machine:
  • cGMP design with emphasis in powder dust handling: Enclosed with main turn table avoid dust getting into mechanical parts of machine.
  • Enclosed dosing system with dust suction reduces cleaning frequency.
  • Vacuum cleaning station for segment clean-up in each cycle.
  • Efficient capsule separation by means of vacuum.
  • Touch Screen HMI, featuring user friendly controls: production counter, manual / automatic / parameter setup modes, alarms.
  • Precision capsule segments and dosing disk minimizes adjustments following parts changeover.
  • Stainless Steel 304 frames and transparent safety interlock guards.
  • Accurate capsule separation without damaging capsule with wide range of different capsules.
  • Automatic rejection system for Non – separated/ improperly inserted capsule top caps.
  • Quick Fill weight adjustments and high precision dosing tools ensures optimum machine efficiency

Technical Specification of Automatic Capsule Filling Machine:
SR. No. Machine Model ACF– 25 ACF – 40 ACF– 70 ACF - 90
1 Production Output / hr. 25,000 capsules 40,000
capsules		 70,000 capsules 90,000 capsules
2 Material of Construction:
Contact parts
Non – Contact parts		   SS 316
SS 304		   SS 316
SS 304 		  SS 316
SS 304		   SS 316
SS 304
3 Power Supply 3 Phase, 415 Volts, 50 Hertz 3 Phase, 415 Volts, 50 Hertz 3 Phase, 415 Volts, 50 Hertz 3 Phase, 415 Volts, 50 Hertz
4 Compressor Air Required 4 CFM 4 CFM 4 CFM 4 CFM
5 Machine Dimensions
Length (in mm)
Width (in mm)
Height (in mm)		   975
875
1955		   975
875
1955		   1300
1200
2300		   1275
1200
2200
6 Net Weight Approx (in Kgs.) 850 850 1400 1600
