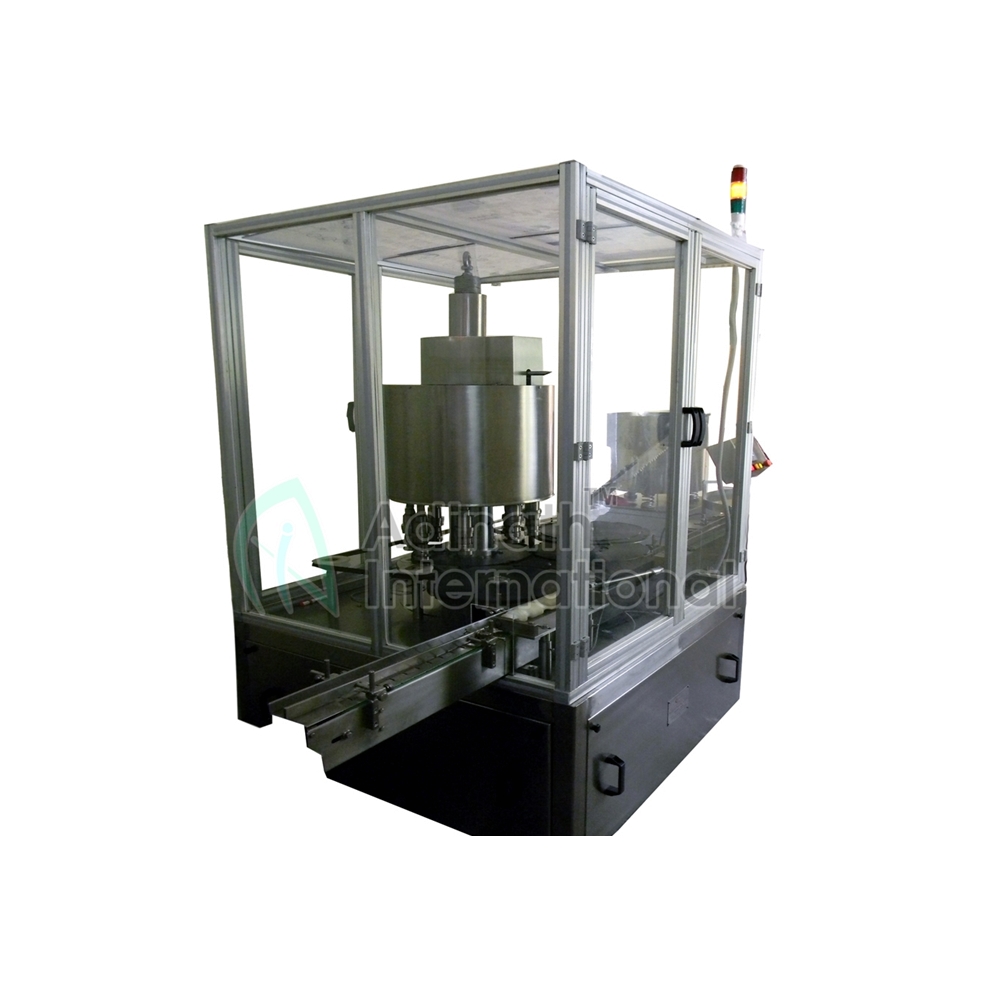

Automatic Four Head Bottle ROPP Capping Machine

Automatic Four Head Bottle ROPP Capping Machine

Automatic Four Head Bottle ROPP Capping Machine is suitable for Round or different shape of Glass, Plastic or LDPE Bottles with maximum speed of 65 to 80 bottles per minute depending on Bottle Size and Cap Size.  Rotary Bottle ROPP Capping Machine is constructed in Stainless Steel finish including machine M.S. frame structure and Stainless-Steel Cladding. This Machine is suitable for applications in Pharmaceutical, Food, Pesticides, Cosmetic and Other Industries requiring higher production speed on automatic online operation.
Four Head ROPP Bottle Screw Capping Machine is equipped with Orientation type Cap Feeder or Vibratory type Bowl Feeder depending on cap shape and size for continues feeding of Cap for online operation on any liquid or powder filling line. Bottle ROPP Capping Machine is suitable for various sizes of Bottles and Plastic Screw Cap with the help of suitable change parts.

Special Features of Bottle Ropp Capping Machine:
  • Number of Head: Four
  • Production Output: 65 to 80 bottles/min
  • No Bottle - No Cap System
  • No Cap - Machine Stop System
  • Machine construction in Stainless Steel Finish
  • In feed and Exit Star Wheel with Overload Clutch System to avoid Bottle breakage
  • Single Drive Synchronizing Total Operation of Star Wheel and Turret with Star Wheel
  • Cap Feeder with Variable Speed System for feeding control of caps.
  • Minimum Change Over and Setting time
  • Hopper can be completely dismantle for easy cleaning
  • Various safety features including Clutch system to avoid Bottle Breakage
  • Single Drive synchronizing operation of Conveyor and Star Wheel
  • Minimum Change over time

Optional Accessories of Bottle Ropp Capper Machine:
Polycarbonate Cabinet with Stainless Steel Structure

Technical Specification of Four Head Bottle Ropp Capping Machine:
Model AI-BRCM 4R
Bottle Size Up to 85mm* or different Shape bottle with proper base
Bottle Height 305 mm* Maximum
Cap Size Up to 28 mm *
Electrical 415VAC 3Phase and 220 VAC Single Phase Power Supply (50 Hz) with A.C. Drive
Power 1.5 H.P.
Conveyor Height 800-900 mm adjustable
Overall Dimensions 1500 mm (L) x 1000 mm (W) x 2000 mm (H)
Production Output Max. 80 Bottles per minute depending on Bottle and Cap Size
* Specification can be changed as per customer’s requirements
