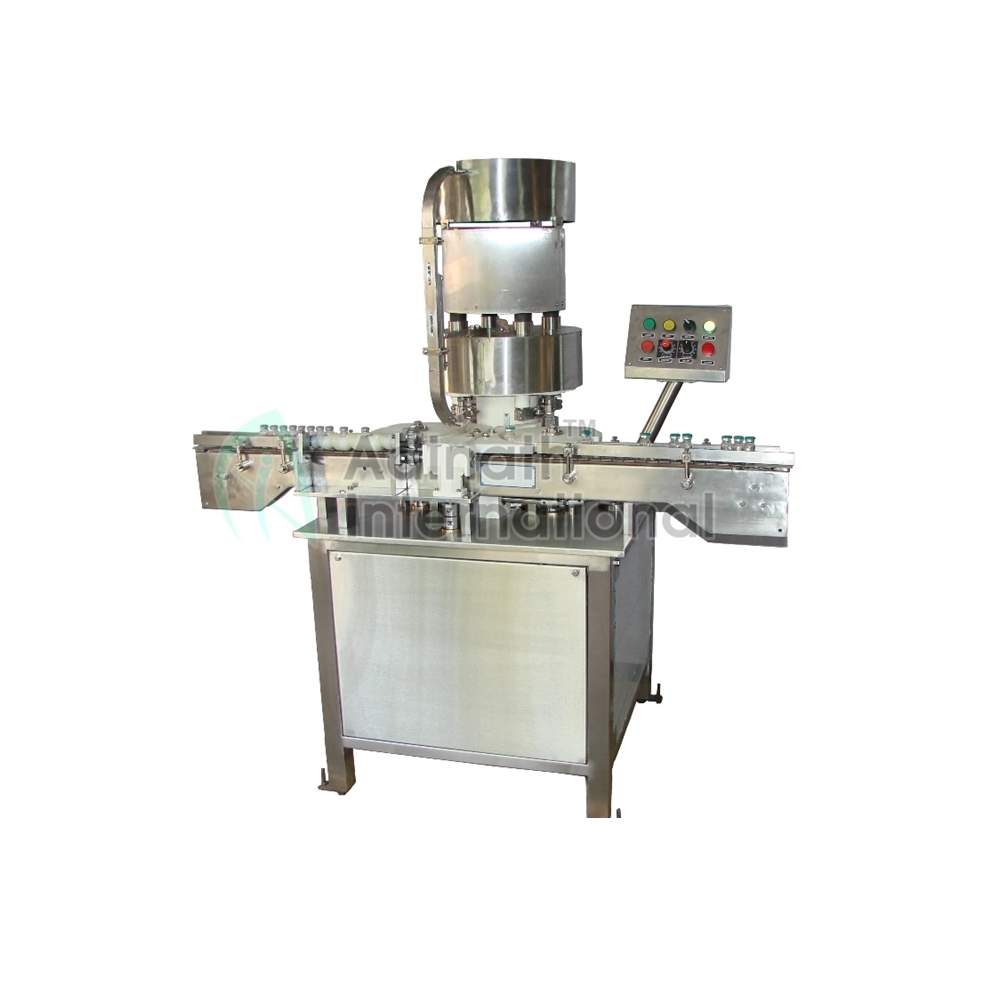

Automatic Measuring Cup Placement Machine


Automatic Linear Measuring Cup Placement Machine Model: AI-MCPM 150 is suitable for Round or irregular shapes of Glass, Plastic, PET, LDPE, HDPE Bottles with maximum speed of 150 Bottles per minute depending on Bottle Diameter, Bottle Height, Bottle Shape and Measuring Cup / Cap Size.
Machine with special Linear Design with No Change Parts system for Change in Bottle Size. Machine with Totally Synchronized Front and Back Bottle Holding Belt with Top Stabilizing and Pressing Belt System.
Specially Machine construction in Stainless Steel finish including machine M.S. frame structure with Stainless Steel Cladding/Enclosures. Machine is ideal for application in Pharmaceutical, Food, Pesticides, Cosmetic & Other Industries. Machine with user friendly operation to handle various type and size of bottles.
The Machine is equipped with Orientation type Cap Feeder or Vibratory type Bowl Feeder depending on cap shape and size for continues feeding of Measuring Cup / Cap for online operation on any liquid of powder filling line. Machine suitable for various sizes of Bottles and Measuring Cup / Cap with the help of change parts. Machine is suitable for application in Pharmaceutical and other industries requiring higher production speed on automatic online operation.

Salient Features of Measuring Cup Placement Machine:

  • No Bottle - No Cup / Cap System
  • No Bottle / Cap - Machine Stop System
  • Machine construction in Stainless Steel Finish
  • Linear Bottle Movement with No Change Parts System for change in Bottle Size
  • Single Drive Synchronizing Total Operation of Bottle Feeding, Bottle Holding Belt and Top Holding / Pressing Belt System
  • Cap Feeder with Variable Speed System for feeding control of caps.
  • Minimum Change Over and Setting time
  • Hopper can be completely dismantling for easy cleaning
  • Minimum Change over time

Additional Features of Measuring Cup Placement Machine:

  • PLC – HMI Interface based automation
  • Cap Feeder Elevator
  • Toughened Glass or Acrylic Safety Cabinet for Machine Model

Technical Specification of Automatic Measuring Cup Placement Machine:

Model AI-MCPM 150
Bottle Size Diameter Up to 85mm* or other Shape bottle with proper base
Bottle Height 300mm* Maximum
Cap Size Actual Samples required
Electrical 415VAC 3Phase and 220 VAC Single Phase Power Supply (50 Hz) with A.C. Drive
Power 2.0 H.P.
Conveyor Height 850-900 mm adjustable
Overall Dimensions 1750 mm (L) x 780 mm (W) x 1875 mm (H)
Net Weight 550 Kilograms
* Specification can be changed as per customer’s requirements
