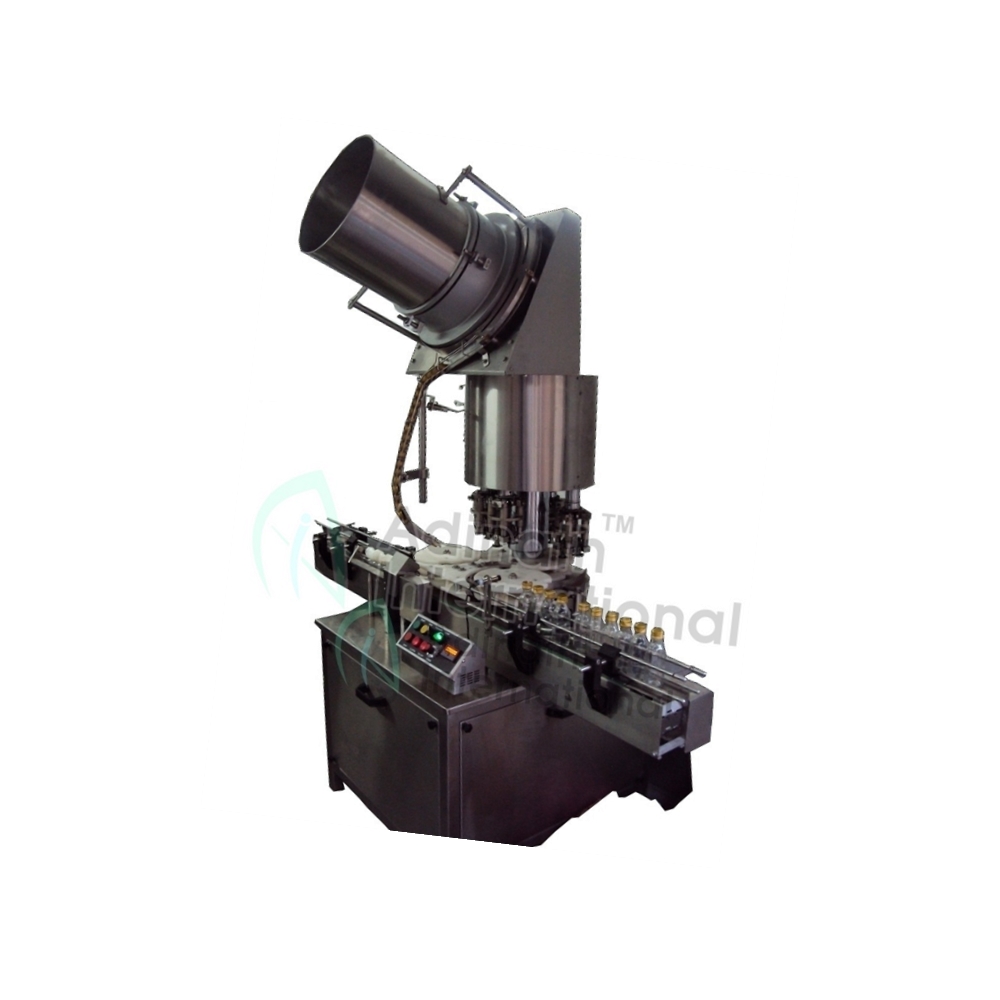

Automatic Single Head Bottle ROPP Capping Machine
Single Head Bottle ROPP Cap Sealing Machine Model: AI-BRCM 1R is suitable for ROPP capping of Round Bottles with speed of maximum 35 to 40 Bottles per minute depending on Bottle Diameter, Height and Cap diameter.
Single Head Bottle ROPP Capping Machine is specially constructed in Stainless Steel finish including M.S. frame structure with Stainless Steel Cladding/Enclosures.
ROPP Bottle Cap Sealing Machine is equipped with Orientation type Cap Feeder for continues feeding of Cap for online operation on any liquid or powder filling line. Machine suitable for various sizes of Bottles as well as ROPP Cap with the help of change parts. ROPP Capping Machine is suitable for application in Pharmaceutical, Food, Pesticides, Chemical, Beverages, Liquor and other packaging industries having lower production requirement with automatic online operation.
Special Features of Bottle Ropp Capping Machine:
Technical Specification of Single Head Bottle Ropp Capper Machine:
| Model No. | AI-BRCM 1R |
| Bottle Diameter | Up to 85mm* |
| Bottle Height | 150mm* Maximum |
| Aluminium ROPP Cap Size | Applicable for 20mm, 25mm, 28mm or 32mm* |
| Electrical | 415VAC 3Phase and 220 VAC Single Phase Power Supply (50 Hz) with A.C. Drive |
| Power | 1.0 H.P. |
| Conveyor Height | 815-850 mm |
| Overall Dimensions | 1500 mm (L) x 735 mm (W) x 1800mm (H) |
| Production Output | Max. 40 Bottles per minute depending on Bottle and Cap Size |
