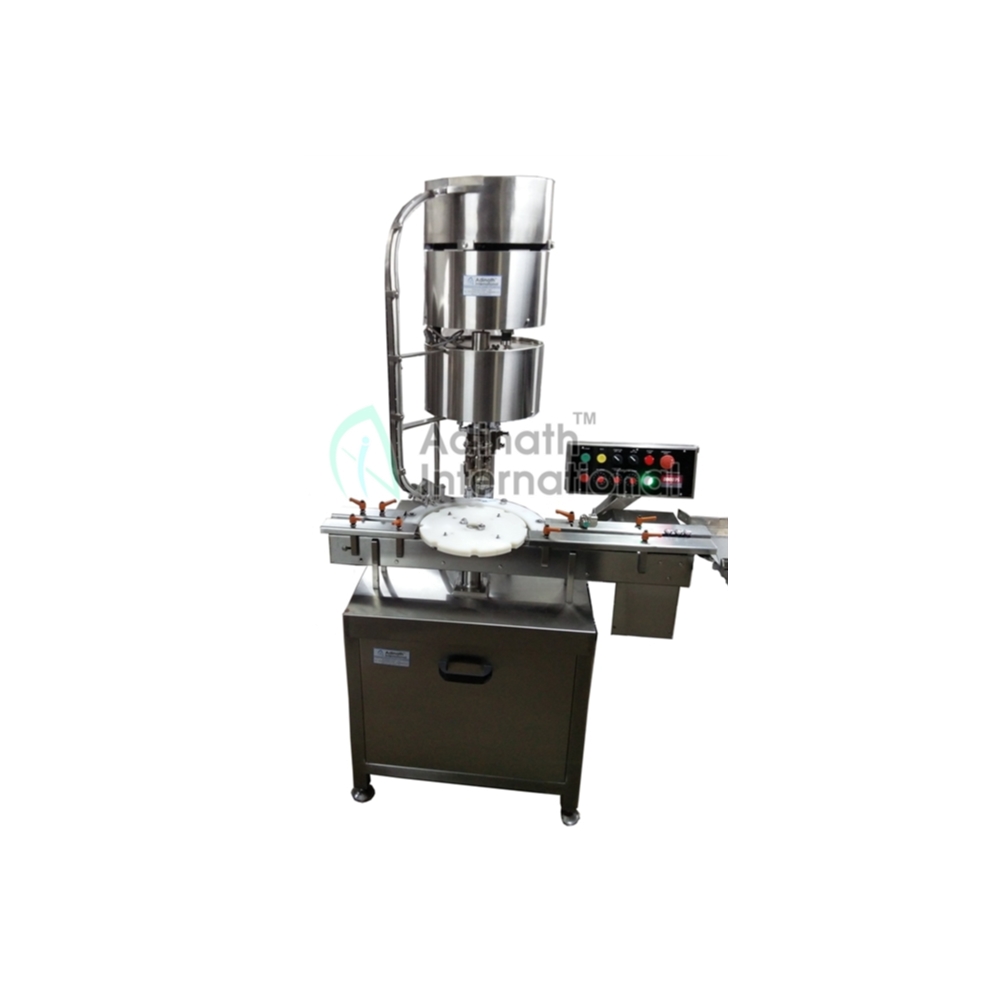

Automatic Single Head Bottle Screw Capping Machine
Single Head Bottle Screw Capping Machine Model: AI-BCS 1 is suitable for Round Bottles with maximum speed of 40 Bottles per minute. Single Head Bottle Screw Capping machine specially designed in Stainless Steel finish including machine M.S. frame structure with Stainless Steel Cladding/Enclosures.
Single Head Bottle Screw Capping Machine is equipped with Orientation type Cap Feeder for continues feeding of Cap for online operation on any liquid or powder filling line Single Head Bottle Screw Capping Machine suitable for various sizes of Bottles as well as Screw Cap with the help of change parts. Capping Machine is suitable for application in Pharmaceutical, Food, Pesticides, Chemical, Beverages, Liquor and other packaging industries having lower production requirement with automatic online operation.
Special Features of Bottle Screw Capping Machine
Technical Specification of Single Head Bottle Capping Machine:
| Model No. | AI-BSCM 1 |
| Bottle Diameter | Up to 85 mm * |
| Bottle Height | 150 mm * |
| Plastic Screw or CRC Cap Size | Applicable for 22mm, 25mm, 28mm or 32mm and 38mm* |
| Electrical | 415VAC 3Phase and 220 VAC Single Phase Power Supply (50 Hz) with A.C. Drive |
| Power | 1.0 H.P. |
| Conveyor Height | 815-850 mm |
| Overall Dimensions | 1500 mm (L) x 735 mm (W) x 1800mm (H |
| Speed | Max. 40 Bottles per minute depending on Bottle and Cap Size |
