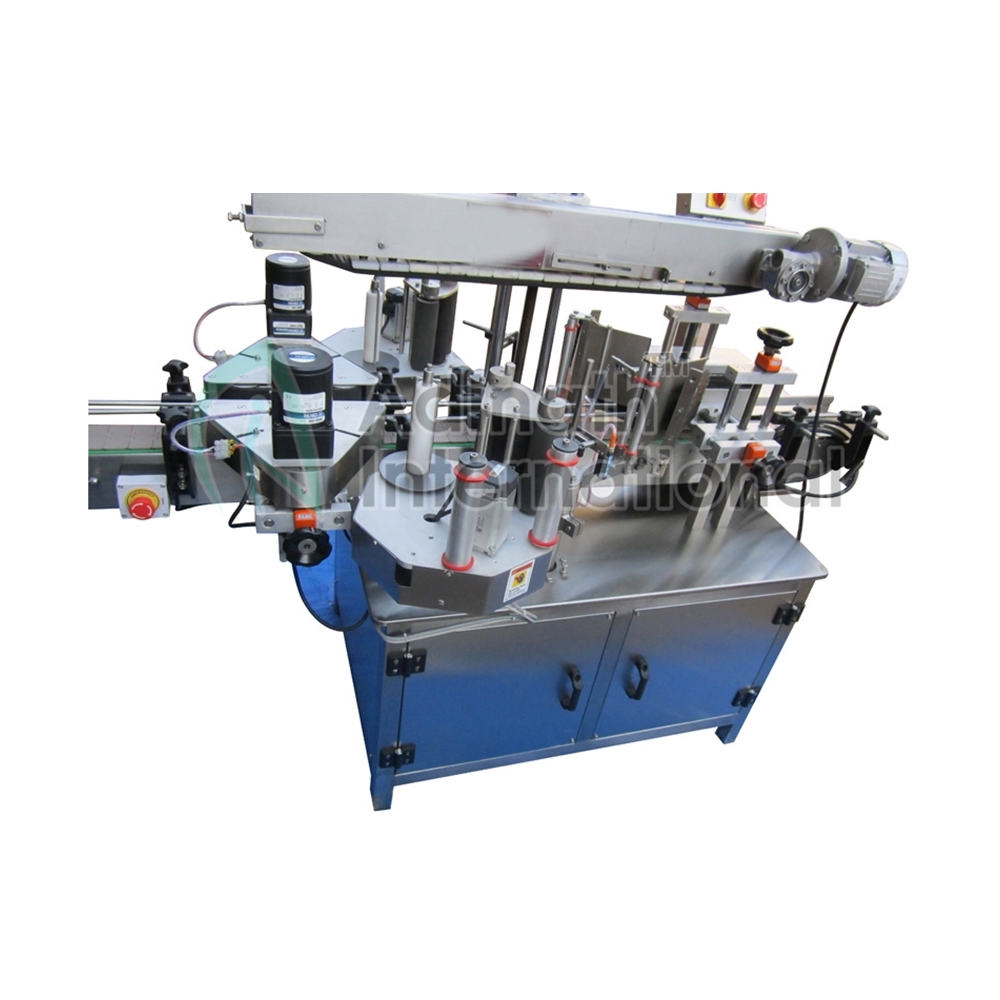

Automatic Single Side Flat Bottle Sticker Labeling Machine
Automatic Single Side Flat Bottle Sticker Labelling Machine Model: AI-BSLM 1S, is one of the most user friendly. Suitable for applying Front, Back or Side Labels on Flat/Oval/Square/Round shape containers with output Up to 120 Labels per minute depending on products Shape/Size and label size. Automatic Product Alignment system synchronised with top holding belt system. The Machine incorporates modern sophisticated Micro Processor Control Label Dispensing system with user friendly Sensing system for Label and Product. Machine also available with Optional Wrap-Round System makes it more flexible to use for Applying Single Side Label on Flat Bottles or Applying Wrap Round Label on Round Products.
The most versatile, elegantly designed linear labelling machine to meet the needs of major users of modern packaging lines, requiring high efficiency with speed, accuracy and durability. Easy to use adjustments, requiring a minimum tool or change of parts. Machine can be designed and supply with Robotised Twin Moving Pocket System or Twin Feed Worm System ensuring perfect alignment of bottles on conveyor for precise labelling application. Selection of Product Stabilizing system is depending on Product Shape, Size and required speed.
The Sticker Labelling Machine AI-BSLM 1S has its own unique single point synchronised speed control system. The Inbuilt Automated Label Length detection systems eliminates any need for manually feeding and storing of Label Length data in memory and retrieving the same every time for change of Label Size & re-starting the machine. The System thus saves valuable time, avoiding machine-down time, and helps achieve higher production. Machine can be supplied with Optional Toughened (Tampered) Glass or Acrylic Safety Cabinet. Machines having required all basic features as a standard fitment to match the current market needs and also saves cost and time. AI-BSLM 1S Series also available with another Model suitable for High Speed Single Side Flat Bottle Labelling with speed up to 250 Labels per minute.
Machine can be designed especially for applying Single Side Flat bottles as well as body / wrapround labels on Round Bottles as an optional feature.
Unique Features of Bottle Sticker Labeling Machine:
- No Label Data Input/retrievals require for any Label Size
- No Change Parts for Label size, Feed Worm and Pocket System required for change
- in product size
- Single Pot On-line Speed Variation control
- Synchronized speed of Label Dispensing, Conveyor and Top Hold Belt System
- Virtually Maintenance free machine
- Easy to change label application height
- User Friendly Label Placing Adjustments
- Self-Protected against Voltage Fluctuations
- Suitable for On-Line Inkjet and Contact Coding System
- Suitable for Partial, Full Wrap Around and Overlap Labelling
- Built in A.C. Variable Frequency Drive System.
- Fully Stainless-Steel Finish Machine
- Refer Plug & Play Sticker Labelling UNIQUE FEATURES page for more details
Special Features of Bottle Sticker Labeler Machine:
Technical Specification of Single Side Bottle Labeling Machine:
| Model No. | AI-BSLM 1S |
| Label Height | 8 mm to 70/90/120/150/180 mm Standard* |
| Label Length | 12 mm Minimum |
| Label Roll Dia. | 300 mm |
| Core Dia. | 75/76 mm |
| Gap Between Two Labels | appx. 3 mm |
| Product Size | As per customers requirements* Feed Worm and Pocket System require for change in Product Size for Special Machine |
| Electrical | 220 VAC Single Phase Power Supply (50/60 Hz) |
| Power | 2.0 Amp |
| Capacity | 0.75 Kw |
| Output | Up to 120 Labels per minute depending on Product and Label Size and up to 250 Labels per minute for Model AI-BSLM 1S, the speed is also depending on stable movement of product on machine conveyor at higher speed. |
| Conveyor height | 830-875 mm* |
| Overall dimension | 1830 mm(L) X 910 mm(W) X 1400 mm (H) |
| Machine Direction of Movement | Left to Right from operator side |
