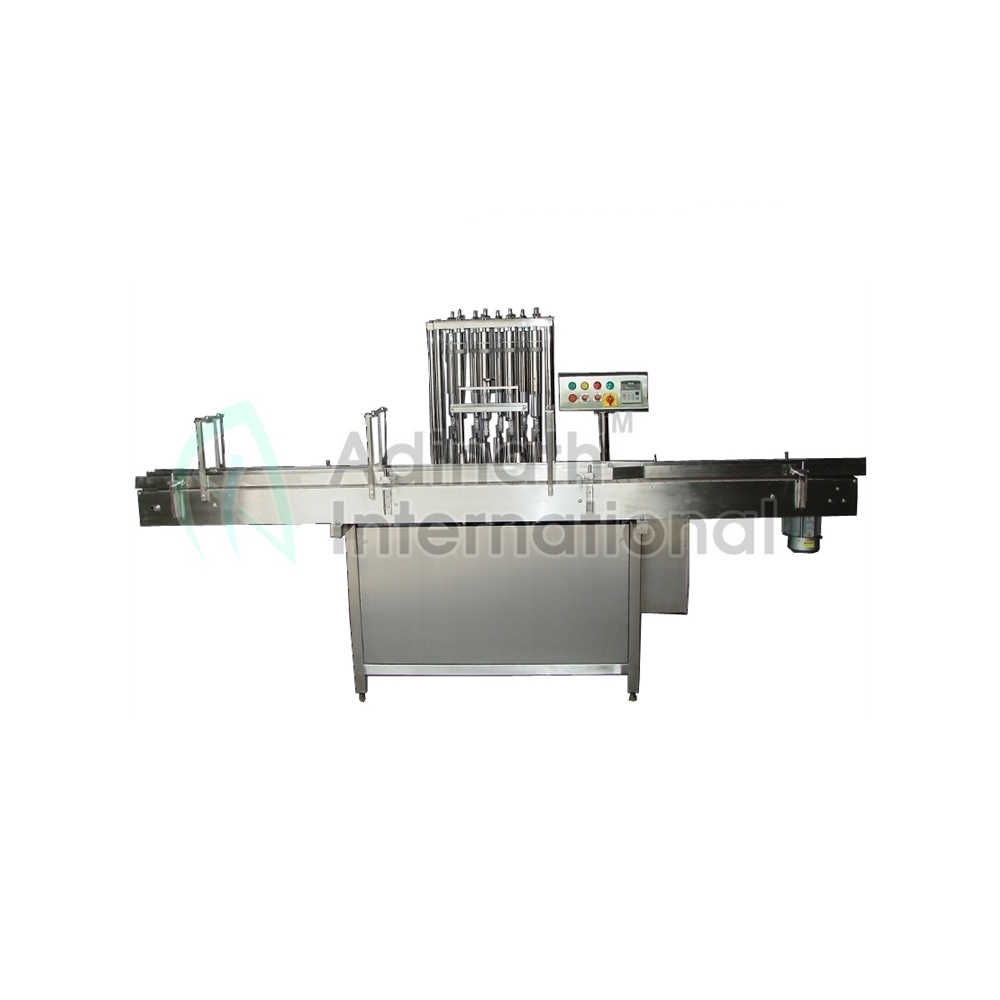

Automatic Six Head Volumetric Liquid Filling Machine

Automatic Six Head Volumetric Liquid Filling Machine

Automatic Six Head Volumetric Liquid Filling Machine Model: AI-BFM 6 is suitable for Bottles with maximum speed of 120 Bottles per minute. The output of Bottle Filling Machines depending on nature of Liquids, Bottle Diameter, Bottle Height, Bottle Neck Size and Fill Volume. Machine construction in fully Stainless-Steel finish including machine frame structure. Machine with Optional Turn Tables at In-feed and Out-feed with individual drives to match the speed of incoming and outgoing Bottles for smoother operation. All parts coming in contact with Liquids are made from SS 316 Materials.

Special Features of Six Head Liquid Filling Machine:
  • No Bottle - No Fill System, No Bottle - Machine Stop System
  • All contact parts made of Ss316 material with easy removal system for Auto-Claving/Sterilization/Cleaning
  • Machine construction in SS 304 material
  • Diving Nozzle for Foam free filling
  • Very High Fill Accuracy
  • Automatic Infeed and Exit of Bottles
  • Minimum Change Over time
  • Unique Free Spinning Bottle Separator- No pneumatic operation
  • Built-in A.C. Variable Freq. Drive System

Technical Specification of Six Head Volumetric Liquid Filler Machine:
Model No. AI-BFM 6
Bottle Diameter 30 mm to 100 mm
Filling Range 30ml to 500ml with help of Change Parts / Syringe
Accuracy +/- 1% Depending on Liquid with Single Dose
Electrical 440 Volts, 3 Ph. 50 Hz. 4 Wire System
Power 2 H.P.
Production Output 120 Bottles Per Minute
Syringe Filling Range 10ml to 50ml,50ml to 100ml, 100ml to 250ml and 250ml to 500ml
Conveyor Height 800 – 850 mm
Overall Dimension 1850 mm (L) x 925 mm (W) x 1565 mm(H)
Net Weight 550 Kgs.
* Specification offered is for reference purpose only.
