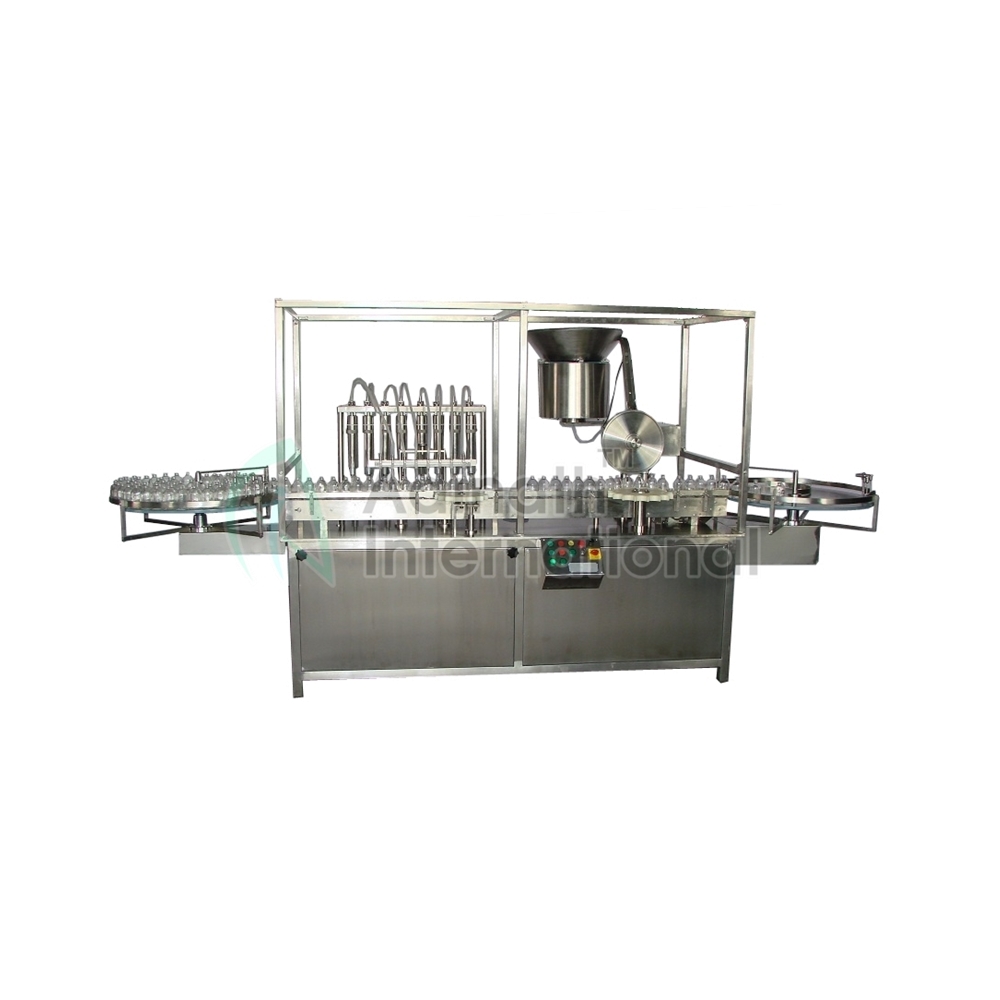

Automatic Vial Filling and Rubber Stoppering Machine
Automatic Two Head Volumetric Liquid Vial Filling with Rubber Stoppering Machine, Model ALVF is suitable for Round Vials with maximum speed of 60 Vials per minute. The Machine can give Maximum speed of 100 Vials per minute depending on nature of Liquids, Vial Neck Size, Fill Volume and Rubber Stopper size. Machine construction in fully Stainless-Steel finish including machine frame structure. Machine with built-in Turn Tables at In-feed and Out-feed with individual drives to match the speed of incoming and outgoing vials for smoother operation. All parts coming in contact with Liquids and Rubber Stoppers are made from SS 316 Materials. Machine also available with vaccumetric type Rubber Stoppering System.
Special Features of Vial Filler and Rubber Stoppering Machine:
Technical Specification of Vial Filling and Rubber Stoppering Machine:
| Model No.: | ALVF 2 | ALVF 4 |
| No. of Filling Head | Two | Four |
| Vial Diameter | 15mm to 50mm* | 15mm to 50mm* |
| Vial Height | 75mm Maximum | 75mm Maximum |
| Rubber Stopper Diameter | 13mm and 20mm Dry or Wet Grey Butyl | 13mm and 20mm Dry or Wet Grey Butyl |
| Filling Range | 1ml to 100 ml with help of Change Parts / Syringes | 1ml to 50ml with help of Change Parts / Syringes |
| Accuracy | +/- 1% Depending on Fill Volume and type of Liquid | +/- 1% Depending on Fill Volume and type of Liquid |
| Electrical | 220 VAC Single Phase Power Supply (50 Hz) | 220 VAC Single Phase Power Supply (50 Hz) |
| Power | 2.0 H.P. | 3.0 H.P. |
| Speed | 40 to 60 Vials Per Minute | Max. 120 per minute |
| Syringe Fill Range | 0.1ml to 1ml, 1ml to 5ml, 2ml to 10ml and 10ml to 50ml | 0.1ml to 1ml, 1ml to 5ml, 2ml to 10ml and 10ml to 50ml |
| Conveyor Height | 800-850 mm | 800-850 mm |
| Overall Dimensions | 2400 mm (L) x 850 mm (W) x 1400 mm (H) | 3000 mm (L) x 850 mm (W) x 1400 mm (H) |
