Conventional Coating Pan

Conventional Coating Pan

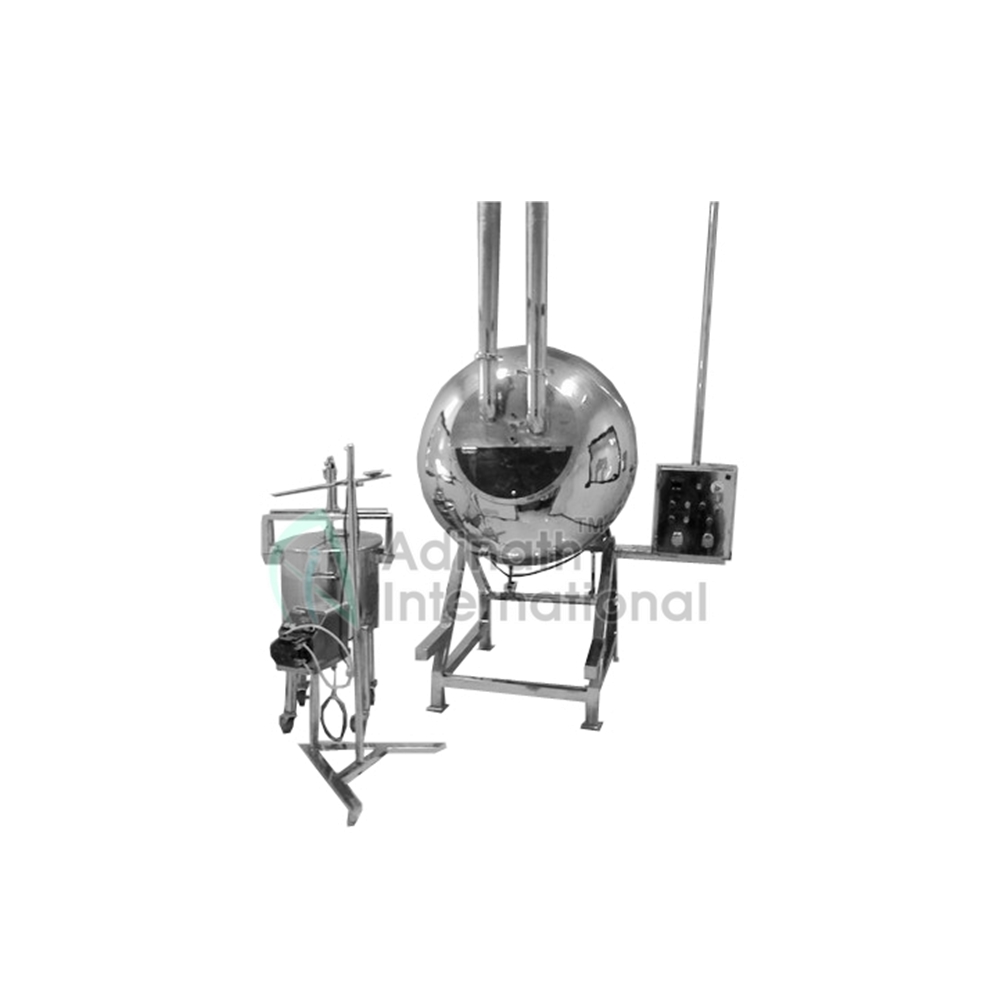

Conventional Coating Pan Model: LCP is specially designed in 30”, 36”, 42”, 48”, 60” or 72”, size SS Pan. Coating Pan is totally enclosed with MS Cladding with standard Gear Box, Motor, Hot Air Blowing arrangement. Machine is designed with MS fabricated structure and all arrangement – except electric control, air filter and SS Pan are inside the enclosure, which makes simple cleanable outside covering. Machine is mounted on dyna mounts which avoids foundation.
30”, 36”, 42” or 48” Coating Machine has variable speed drive and hot air blowing system is built in the machine.
60” or 72” Coating Machine has two speeds with step pulley without hot air blowing system. Suitable hot air blowing system can be supplied separately on demand.
All clit Coating Machines are provided with interlocked electrical circuit so that heaters can be operated only after blowers are made ‘ON’ to avoid burning of hearts. Coating SS Pan Mouth ring is soldered at their rim cavities to avoid collection of dirt or contaminated drug. Clit standards machine with Redicon Gear Box and NGEF or Siemens Motor and all electrical controls are of Siemens or L&T make. Thermostat control can be provided on demand. On customer demand, Gear Box and electrical including motors can be provided local make for economic purpose.

Special Features of Coating Pan:
  • In compliance with cGMP guidelines
  • Sanitary design of pan
  • Excellent tablet rolling welded baffle
  • Spraying system with peristaltic pump and solution tank (Optional)
  • Quick dismantle & adjustment of spray guns (Optional)
  • Effective coating of tablets
  • Adjustment angle of pan
  • Interchangeable pans from higher to lower capacity
  • Exhaust blower with motor (Optional)

Technical Specification of Coating Pan:
Model No. ACPM 18” ACPM 24” ACPM 36” ACPM 48” ACPM 60” ACPM 72”
Working Capacity 2 – 4 Kgs. 4 – 8 Kgs. 40 – 70 kgs. 80 – 150 kgs. 200 – 350 kgs. 500 – 800 kgs.
Pan mouth Dia. (in mm) 250 300 425 500 500 500
Pan Speed RPM 5 - 24 5 - 24 5 - 24 5 - 24 5 - 24 5 – 24
Main Drive H.P. 1 H.P. 1 H.P. 3 H.P. 3 H.P. 5 H.P. 5 H.P.
Inlet Blower H.P. 0.75 H.P. 1 H.P. 5 H.P. 5 H.P. 7.5 H.P. 7.5 H.P.
Inlet Blower CFM 400 400 1800 1800 2600 3500
Outlet Blower H.P. 1 1 1 H.P. 2 H.P. 5 H.P. 10 H.P.
Compressed Air (Bar)

6
Power Supply

415V ± 10%, 3Phase, AC
