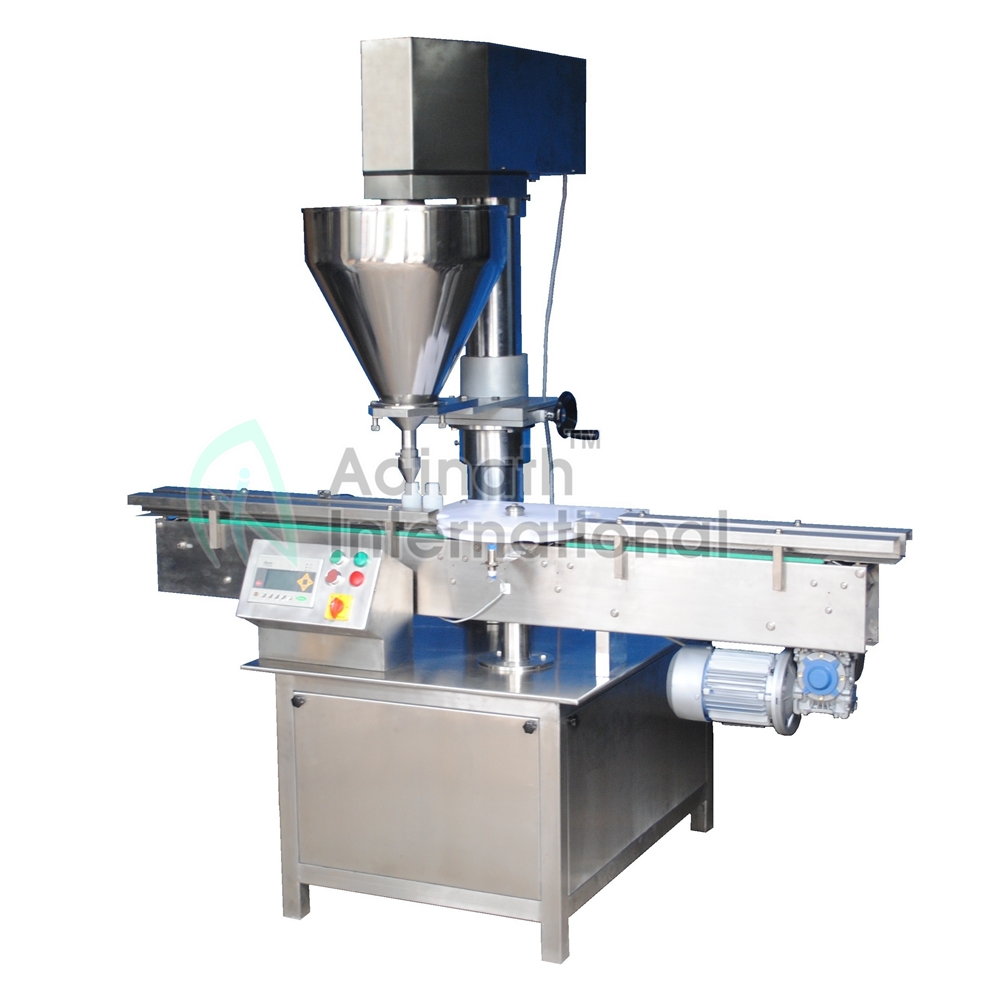

Double Head Auger Powder Filling Machine
Automatic Double Head Augur Powder Filling Machine Model AI-APFM 2, is suitable for Filling Dry Syrup, Powder and Granules in different type and shape of bottles with maximum speed up to 60 Bottles per minute depending on Fill Volume, type of Powder and Bottle Size using Single track twin hopper system. Machine with proven Augur type Powder Filling System for filling higher grammage of Powder in Single Dose. All Parts coming in contact with powder are made from SS316, Nylon and HDPE material. Machine with no change parts system for change in Size of Bottles due to pneumatically operated bottle separator system. Machine with built in Turn Table for Round Bottle at the infeed for continues feeding of bottles.
Special Features of Double Head Auger Powder Filling Machine:
Technical Specification of Double Head Auger Powder Filler Machine:
| Model No.: | AI-APF 2 |
| Container Diameter | 25mm to 85mm* |
| Container Height | 100mm* Maximum |
| Filling Range | 5gms. To 60gms. In Single Dose System |
| Accuracy | +/- 2 to 3% Depending upon the Powder, under the controlled level of Humidity |
| Humidity | Below 30% Rh required on machine to be arrange by customer |
| Electrical | 415VAC 3Phase and 220 VAC Single Phase Power Supply (50 Hz) with A.C. Drive |
| Power | 4.0 H.P. |
| Conveyor Height | 815-940 mm adjustable |
| Overall Dimensions | 3800 mm (L) x 1500 mm (W) x 1900 mm |
| Production Output | Max. 60 Bottles per minute |
