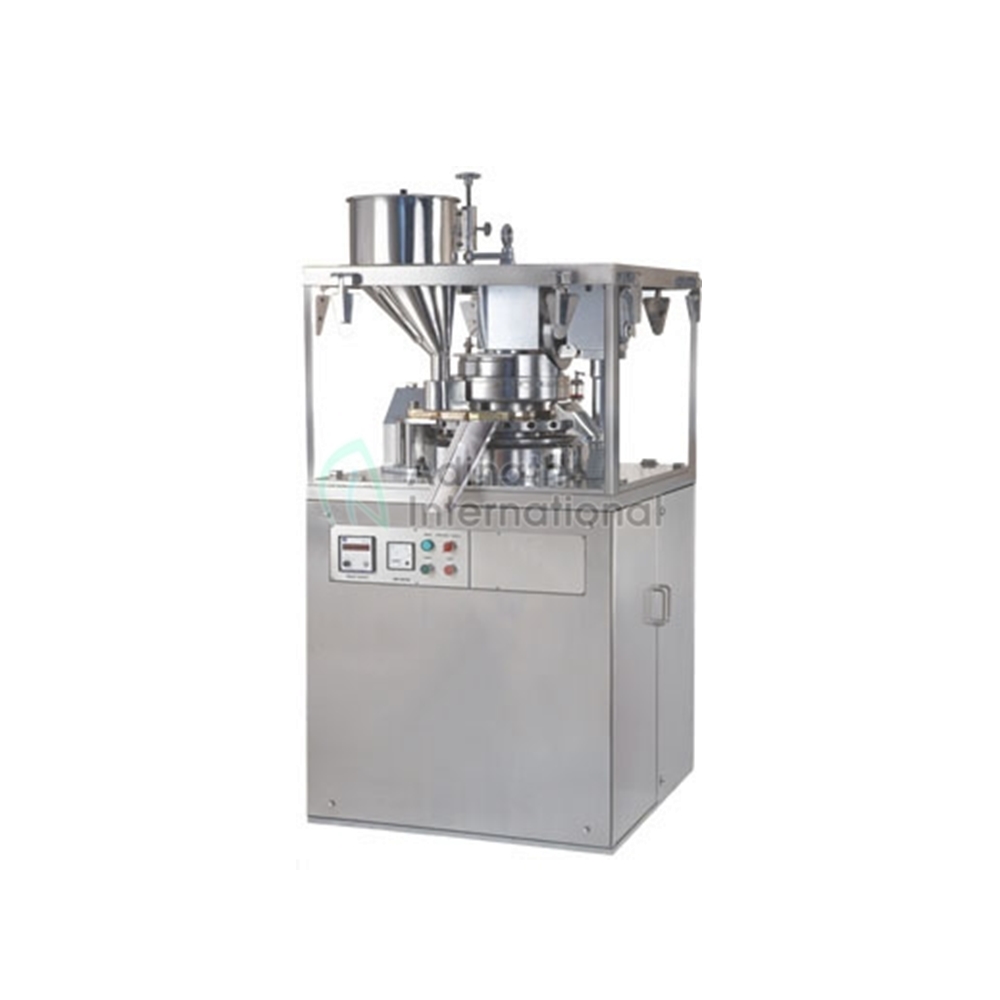

Double Sided Rotary Tableting Machine Model: ATPM is a square type double sided rotary tablet Press equipment promising unmatched quality for medium batch Production. Safety/enhanced performance/cleanability and ease of operation are its most significant features. The suitable model can be selected based on the tooling and output requirement from the 27, 35 & 45 station with “D”, “B” & “BB” tooling respectively.
Salient Features of Rotary Tablet Press Machine:
- Square GMP model.
- Machine is having heavy duty C.I. body & C.I.
- middle plate.
- Easy and more thorough cleaning.
- Excellent and operator friendly material feeding system.
- Lower guards of polished stainless steel.
- Upper guards of transparent acrylic material.
- Digital tablet cum RPM counter.
- Turret of special grade S.G. casting.
- Aluminium turret guards.
- Higher turret speeds up to 40 RPM.
- Phosphorous bronze bush provided inside the turret hole.
- Imported needle roller beaning provided at the bottom of turret.
- Cam tracks & pressure rolls made out of alloy steel.
- Worm is made of phosphorous bronze material.
- Upper punch penetration system.
- Effective dust extraction nozzles.
- Interlock to all guards.
- Variable speed pulley.
- One shot lubrication system.
- Double sided lifting cams.
- Anti-vibration mounts.
- Overload pressure release system.
- Reverse direction motion protection is provided to avoid major accident.
- Available with intermittent auto lubrication pump. (optional)
- Available with force feeding attachment. (optional)
- Also available with SS 316 middle plate in turret.
- Also available with electroless nickd plating turret.
- Machine can be equipped to compress two-layered tables. (optional)
- Also available with AC variable drive for main motor. (optional)
- Also available with front control. All parameters can be set outside of machine
Technical Specification of Double Side Rotary Tablet Press Machine:
| Model No. |
ATPM 27D |
ATPM 27B |
ATPM 35B |
ATPM 45B |
| Number of Station |
27” |
27” |
35” |
45 |
| Type of Tooling |
‘D’ |
‘B’ |
‘B’ |
‘BB’ |
| Production Output (Per Hour) |
65,000 – 1,30,000 |
65,000 – 1,30,000 |
70,000 – 1,68,000 |
90,000 – 2,25,000 |
| Max. Operating Pressure |
10 Ton |
6.5 Ton |
6.5 Ton |
6.5 Ton |
| Max. Tablet Diameter |
25 mm |
16 mm |
16 mm |
11 mm |
| Max. Depth of Fill |
20 mm |
17 mm |
17 mm |
17 mm |
| Upper Punch Entry Penetration |
1.5 – 8 mm |
1.5 – 8 mm |
1.5 – 8 mm |
1.5 – 8 mm |
| Turret RPM |
40 RPM |
40 RPM |
40 RPM |
40 RPM |
| Electric Motor |
5 HP, 3 Phase, 1440 RPM, 415 V., 50 Hz |
| Overall Dimensions |
1800 mm x 1000 mm x 1040 mm |
| Net Weight |
1450 Kilograms |
