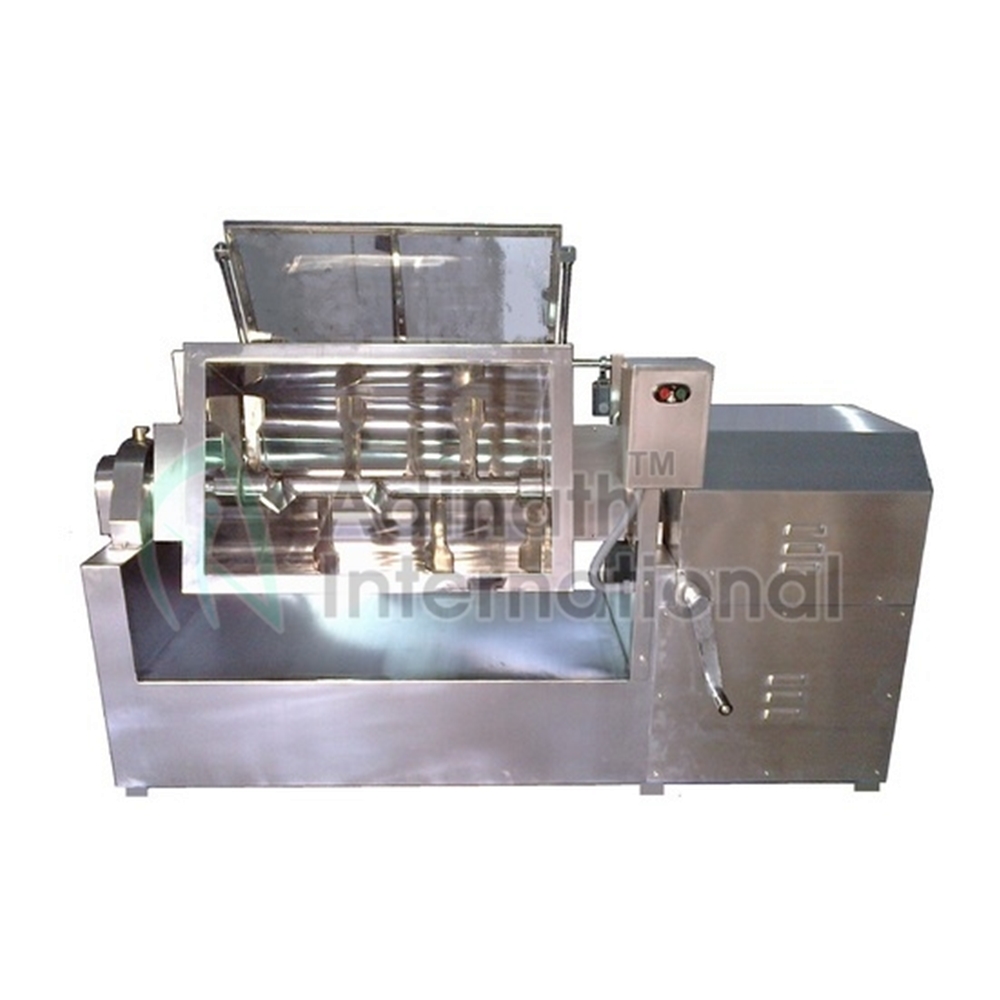

Mass Mixer

Mass Mixer Machine Model: AMM is basically mixing an assembly wherein the mixing stirrer is in horizontal position in the container & has a single speed, simple rotation. The stirrer rotates around itself at a very slow speed inside the bowl and thereby achieving intimate mixing of dry or wet materials of Tablet Granulation, Powder, Chemicals, and Food & Confectionaries Materials.

Because of a special design feature of machine & stirrer, the mass mixer can be mix the sticky materials & also uniformly and intimately mix the materials which are to be difficult to mix.

Special Features of Mass Mixer:

• In compliance with cGMP guidelines.
• Also available with Standard Painted Model.
• Conventional efficient mixing through paddle type blades welded to the main shaft horizontally mounted in the container & has single speed, simple rotation.
• All contact parts of AISI stainless steel 304 material.
• AISI stainless steel 316 quality contact parts optional.
• Easy for cleaning and operating.
• Safety Plastic dust cover provided for apparently seeing the mixing process.
• Interlocking system at plastic dust cover is provided to avoid the accident.
• The tilting device provided by means of hand wheel (manually operated) for easy unloading of the material.
• Specially designed self-adjusting sealing arrangements to ensure no black particle enter into the mixing drum.
• Models for Small Scale, Laboratory (Research Purpose) Capacity, as per customize requirement are also available.
• Flame proof electrical can be provided with extra cost.
• Efficient for mixing of dry or wet materials of Tablet Granulation, Powder Mixing, Chemical, Food, Confectionary etc.

Technical Specification of Mass Mixer:
