Monoblock Bottle Filling & Capping Machine

Monoblock Bottle Filling & Capping Machine

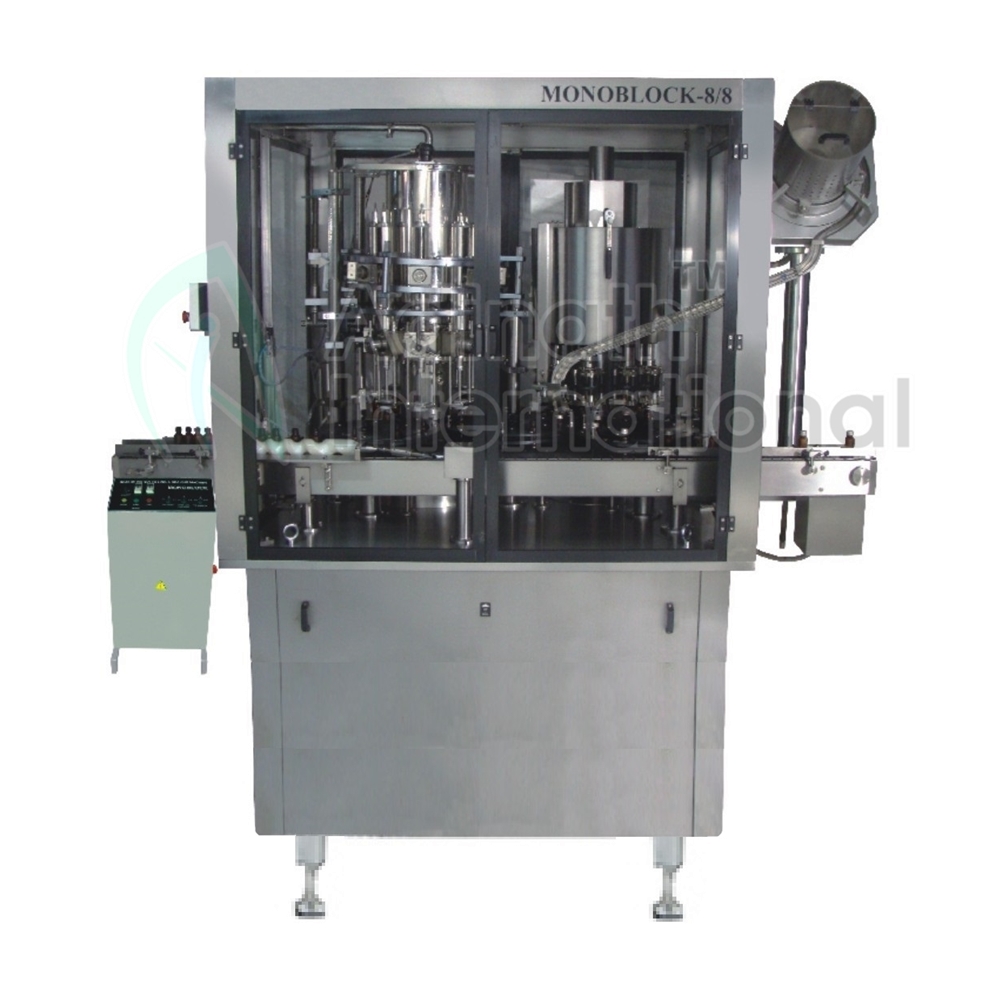

Automatic Monoblock Volumetric Bottle Filling and Capping Machine, Model AMBF is suitable for Round, Oval, Flat or Square Bottles with maximum speed up to 120 Bottles per minute. The output of Bottle Filling Machines depending on nature of Liquids, Bottle Diameter, Bottle Height, Bottle Neck Size and Fill Volume. Machine construction in fully Stainless-Steel finish including M.S. Frame structure with SS304 cladding. Machine with Optional Turn Tables at In-feed and Out-feed with individual drives to match the speed of incoming and outgoing Bottles for smoother operation. All parts coming in contact with Liquids are made from SS 316 Materials.
Machine works on Volumetric Piston Filling principal which fills Liquid into the bottle with High Level of Fill Accuracy of liquid in each bottle. Machine suitable for Filling Pharmaceutical products, Oil, Mouth Wash etc.

Special Features Monoblock Bottle Filling Capping Machine:
  • No Bottle - No Fill System, No Bottle - Machine Stop System
  • Rotary Bottle Movement system for smoother operation
  • All contact parts made of Ss316 material with easy removal system for Auto-Claving/Sterilization/Cleaning
  • Machine construction in SS 304 material
  • Very High Fill Accuracy
  • Automatic Infeed and Exit of Bottles
  • Minimum Change Over time
  • Filling and Capping operation in Single machine due to Monoblock design
  • Built-in A.C. Variable Freq. Drive System

Technical Specification of Monoblock Bottle Filler and Capper Machine:
Model Number AMBF 2 AMBF 4
Production Output 30 to 60 Bottles/ Min 60 to 100 Bottles/ Min
Bottle Diameter 25mm to 85mm* 25mm to 85mm*
Capping Type ROPP/ Screw ROPP/ Screw
Cap Size 18mm to 55mm 18mm to 55mm
Filling Range 15ml to 120ml or 30ml to 250ml* 15ml to 120ml or 30ml to 250ml*
Syringe Fill Range 15ml to 120ml,30ml to 250ml or 250ml to 500ml* 15ml to 120ml,30ml to 250ml or 250ml to 500ml*
Accuracy +/- 1% Depending on Liquid with Single Dose +/- 1% Depending on Liquid with Single Dose
Electrical 440VAC 3 Phase / 220 VAC Single Phase Power Supply (50 Hz) 440VAC 3 Phase / 220 VAC Single Phase Power Supply (50 Hz)
Power 2.5 H.P. 2.5 H.P.
Conveyor Height 850 – 900 mm adjustable 850 – 900 mm adjustable
Overall Dimension 2200 mm (L) X 950 mm (W) X 1550 mm (H) 2400 mm (L) x 1250 mm (W) x 1550 mm(H)
* Specification offered is for reference purpose only.
