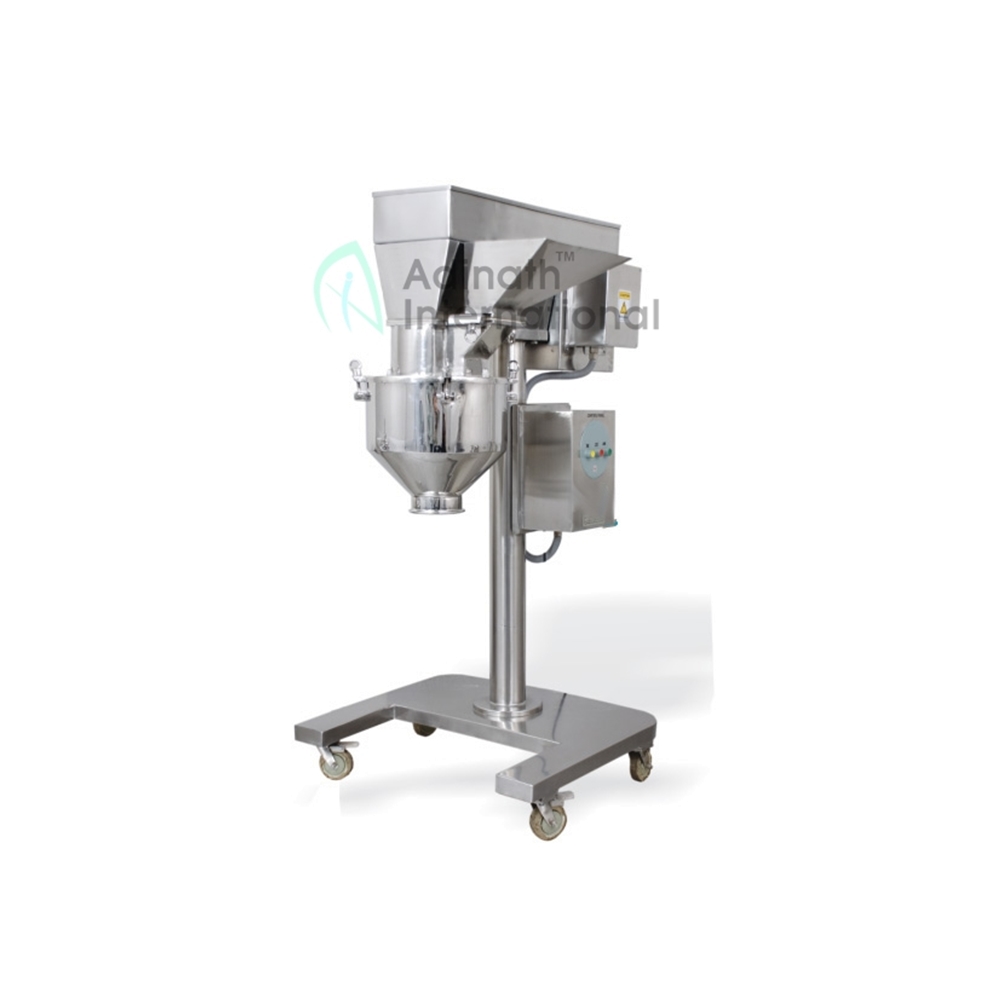

Multi Mill

Multi Mill

Multi Mill is used for high speed Granulating, Pulverizing, Mixing, Shredding and Chopping etc. of a wide range of wet and dry materials without special attachments. As compared to the four common principal of reduction, i.e. grinding, compression, impact and shearing, which do not produce controlled size machine utilizes the principle of variable force swing hammer blades having both knife and impact edges rotating reduction, this with a carefully selected screen to control size reduction.

Flow path of material in vertical rotor machine is streamlined. During comminuting, material entering the chamber travels to the periphery and passes through the screen tangentially and radially avoiding chocking and temperature rise.

Special features of Multi Mill:
  • Machine portable on castor wheels
  • High output with process uniformity
  • Direction of the blade rotation can be change using a reversing switch for hammer or knife operation
  • Multiple combinations of Screens/ Speeds/ Number of Blades
  • Direction of blade rotation for every product type
  • High Screen opening area for Higher Throughput
  • Easy dismantling and cleaning of all components reducing

Technical Specification of Multi Mill:
Model No. AMM 1 AMM 3
Output 200 Kgs./hour 300Kgs./ hour
Electrical 415 V, 50 Hz, 1440 RPM
Motor 3 H.P. 0.5 H.P.
Operation VFD Speed Control Based VFD Speed Control Based
No. of Beater 12 Nos. 8 Nos.
Change Parts SS Perforated Screen (Holes Dia MM)
  1. 0.5, 1.0, 1.5 Sizes
  2. 2, 3, 4, 5, 6
  3. 7, 8, 10, 15, 20,25
Optional Features FLP Motor, FLP Panel
