Multijet Ampoule and Vial Washing Machine

Multijet Ampoule and Vial Washing Machine

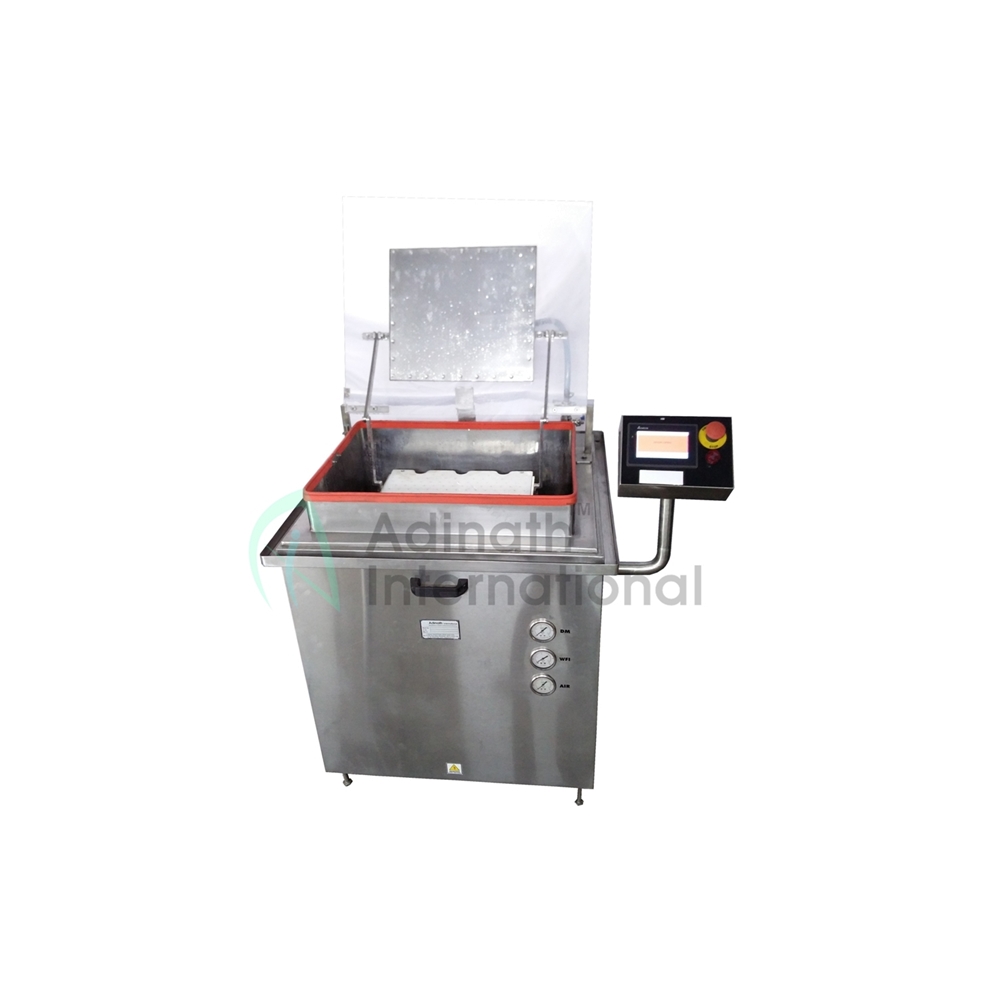

Multijet Ampoule and Vial Washing Machine is a semi automatic, compact, versatile and a reliable ampoule and vial Washing machine, equipped with the latest GMP standards requirements. Multijet Ampoule & Vial Washing Machine is designed with stainless steel construction with compliance to wash ampoule size of 1ml to 20ml and glass vial sizes of 2ml to 100ml with the help of suitable change parts. The standard unit is having mechanical motorized cam operated valve system for observing total six washing in one cycle. Alternatively timer operated solenoid valve system or microprocessor controlled timer sequences can be in-corporate upon specific customer request. Multijet Ampoule & Vial Washing Machine is widely use in medium & small scale injectable organizations.

Salient Features of Ampoule Washing Machine:
  • Positive & pressurized jets through washing needle for pressure cleaning at minimum usages for washing media.
  • Sound design concept of pressure tank for reverses & continuous supply of washes medias.
  • Both internal & external washing ensuring absolutely & continuous ampoule / vial after sequential washing.
  • Acrylic top cover for clear view of washing events taking place in the machine
  • On-line poly carbonates housing with P.P. replaceable filter cartridge of 5 OR 10 micron of water for best possible washing.
  • All contact parts of washing media are of S.S.
  • In the event of acrylic cover lifted during cycle operation, the machine will automatically stop and re-start from the point when cover is pushed down.

Process Operation of Vial Washing Machine
The dump loading procedure may be used, if ampoules/vials are received in ready to dump boxes, which will have exactly into the same number of ampoule/vial and the pitch, as loading tray. Alternatively, each ampoule/vial has to be arranged into the tray. The loading tray/s is placed directly into the machine & the handle bar is lowered for ampoule/vial for automatic centering of washing needles into the ampoule/vial mouths. The top cover is also lowered & switch is operated for automatic sequent

Washing Cycles (Internal/ External Washes) Washing Media
1st wash DM water
2nd wash Purified Air
3rd wash DM water
4th wash Purified Air
5th wash Distilled Water (WFI)
6th wash Purified Air


Technical Specification of Ampoule Vial Washing Machine
Model: AAVW  340
Production Rate 30 to 110 Vials/Min.
90 to 160 Ampoules/Min.
Input Specification
Ampoule Diameter 10mm to 21.5mm
Ampoule Height 60mm to 140mm
Vial Diameter 15mm to 56mm
Vial Height 56mm to 110mm
Power Specification 0.25 H.P.
Electrical Characteristics 440 Volts, 3 Phase, 4 Wire System, 50 Hertz
Utility Requirement
Distilled Water 2 Kg/cm²
Air 20 CFM @ 5 bar
Overall Dimension 990 mm (L) X 860 mm (W) X 940 mm (H)
* Specification can be changed as per customers’ requirements
