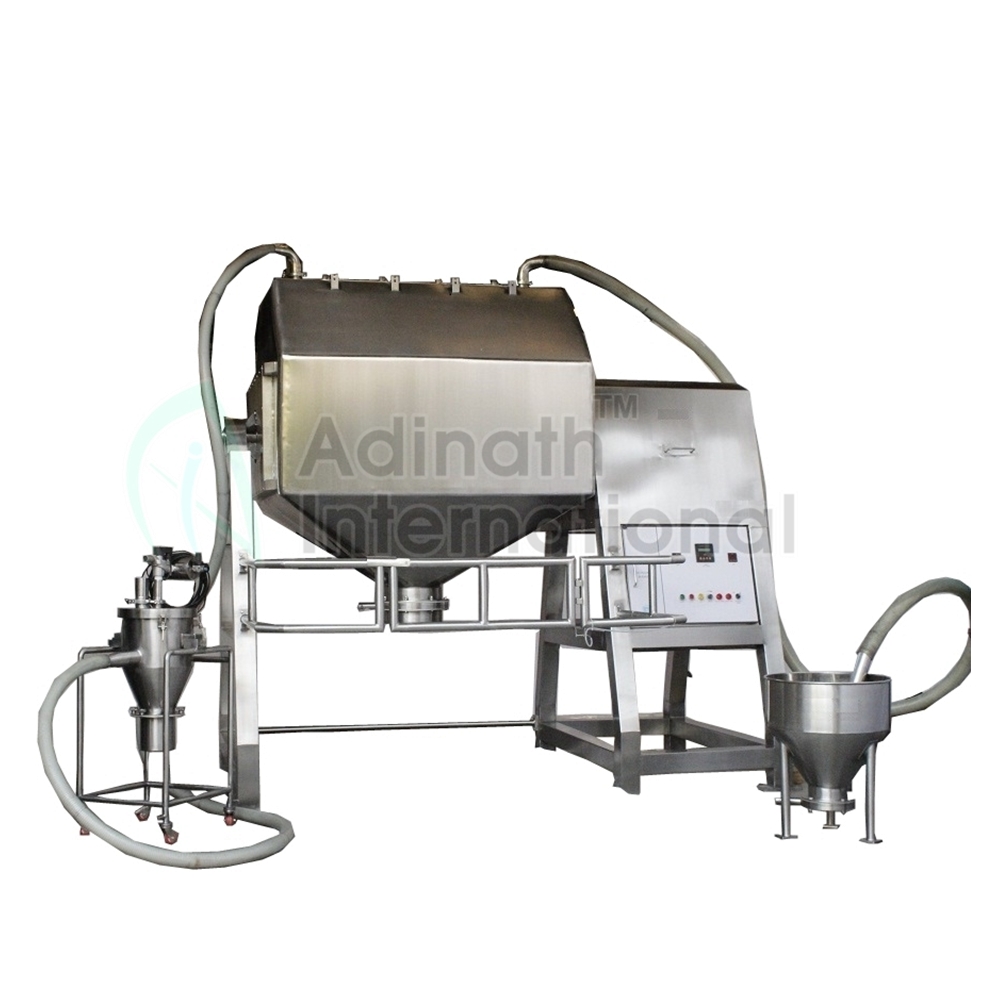

Octagonal Blender

Octagonal Shape Model AOB blender is designed to process larger volume of material. It occupies less space compared to other similar blenders like V and Double Cone. Power consumption is also less. The blending takes place at low speed during operation. It is well balanced even in higher capacities. It is very useful for pharmaceutical industries where in gentle of dry granules of powder are to be done. It is a slow sped blender and has removable type baffles mounted on a rectangular shell. The important feature of machine is easy to wash in place. Octagonal blender is supplied with a bin charging system or can be designed for vacuum charging. Dust free charging system is also incorporated, which is a completely closed system for charging and discharging of powders and granules. The power consumption is comparatively lower than other similar types of blenders. The machine basically consists of shell welded with conical Octagonal shape ends and supported with sturdy supporters on the both side.

The right hand side shaft is connected to a standard gearbox by means of chain and sprockets, which in turn coupled to an electric motor. The whole drive assembly is coupled with SS side panel. The inside panel portion of Octa body is mirror polished and the outside surface of the Octa body, frame & guards are matt polished. The material is to be mixed is charged in the machine either manually from top or bin discharging system or vacuum charging system and then the port is locked positively. Then blender is started to preset blending time. At the end of process, machine is stopped and the product is transferred to process containers by opening the butterfly valve.

Special Features of Octagonal Blender:

• Material handling in Octa Blender is through Bin Charging or Vacuum Charging System
• Bin charging system ensures Dust free closed system for charging and discharging of product
• Slow speed blender with gentle blending of Dry granule
• Optional in built Vacuum Design. No external PTS required
• The baffles are eliminated with blending profile analysis available.
• Pneumatically actuated valves for dust free transfers
• Bins with level sensory for automatic cut off
• Mechanical seals on shafts for pneumatic connections
• cGMP design for ease of cleaning

Technical Specification of Octagonal Blender:
