Ribbon Blender

Ribbon Blender Model AI-RB is compact model used widely in pharmaceutical, nutraceutical, cosmetic, chemical and food industry. It is a light duty, compact blender is specially designed to achieve convention mechanism of blending powder components which are pre–processed like dried granules, pre-sieved powders etc. It is low shear mixer and ideal for solid/ solid mixing and solid/ liquid mixing can also be achieved when high shearing force is not desired. It occupies less head room space for large volume mixing unlike Double Cone, 'V' Blenders etc.

Special features of Ribbon Blender:

• Available in two shapes - U & W.
• U-for Low to Medium Volume Capacity (single shaft).
• W-for Large to Mega Volume Capacity (double shaft).
• Batch size based on 65% of Blender volume.
• All contact parts in stainless steel 304.
• Bearing mounted on lanterns out of mixing zone to avoid Cross contamination.
• Feeding through a charging port mounted on top of the blender.
• Reduced Material handling due to side discharge facility of processed materials.
• Monoblock Design avoids Cross Contamination
• Meets all cGMP / cGMP standards
• Air purge on the side entry seals for better cross contamination control
• Continuous Ribbon design for complete discharge of the finished product.
• Variable frequency drive for fine tuning the Shear energy at different stages of Blending
• Belt driven power transmission for Quieter environment and less maintenance.
• Reduced material handling with Top mounted charging port and Side discharge arrangement for Total containment.
• Bearing mounted on the lanterns outside the Mixing zone to avoid Cross contamination.
• Paddle style agitator instead of Ribbon for Blending fragile materials.
• Capacity available 50 Kg to 2500 Kg

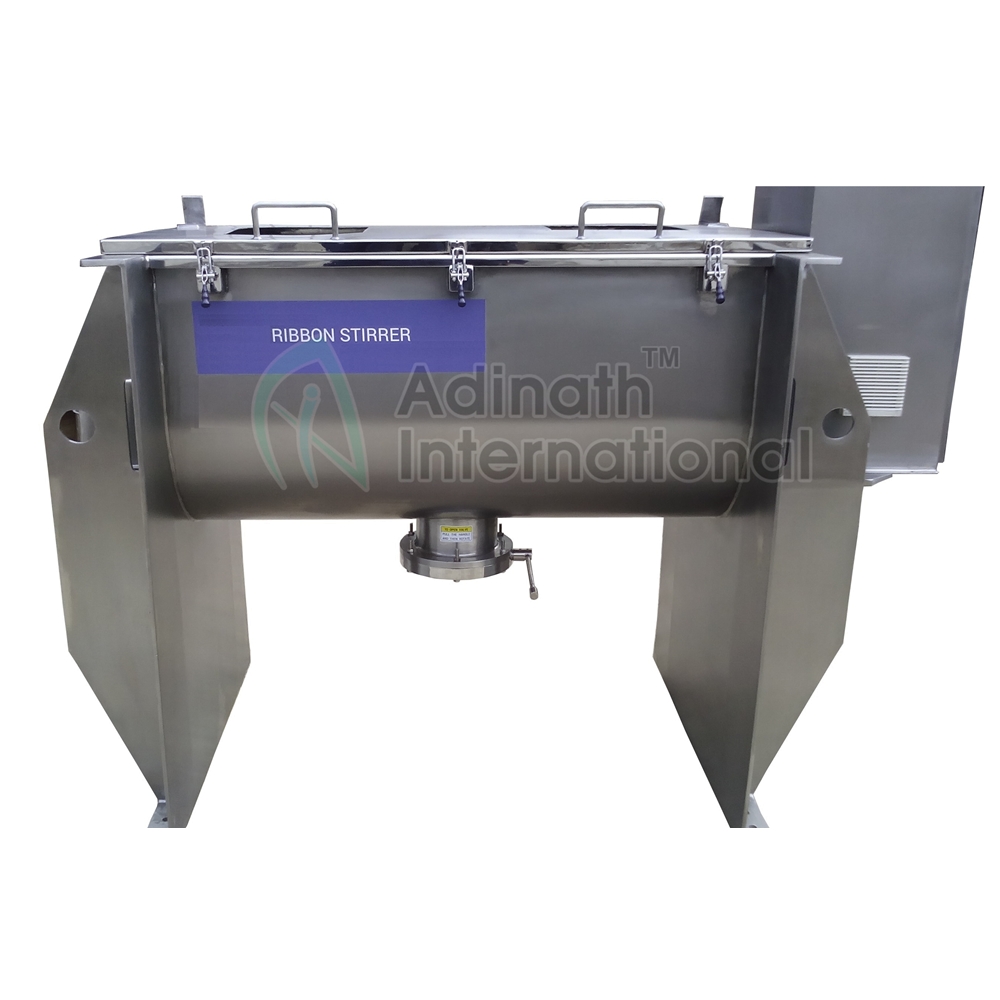

Applications of Ribbon Blender Inside View:

• Pharmaceutical
• Nutraceutical
• Chemical
• Cosmetics
• Food

Technical Specification of Ribbon Blender:
