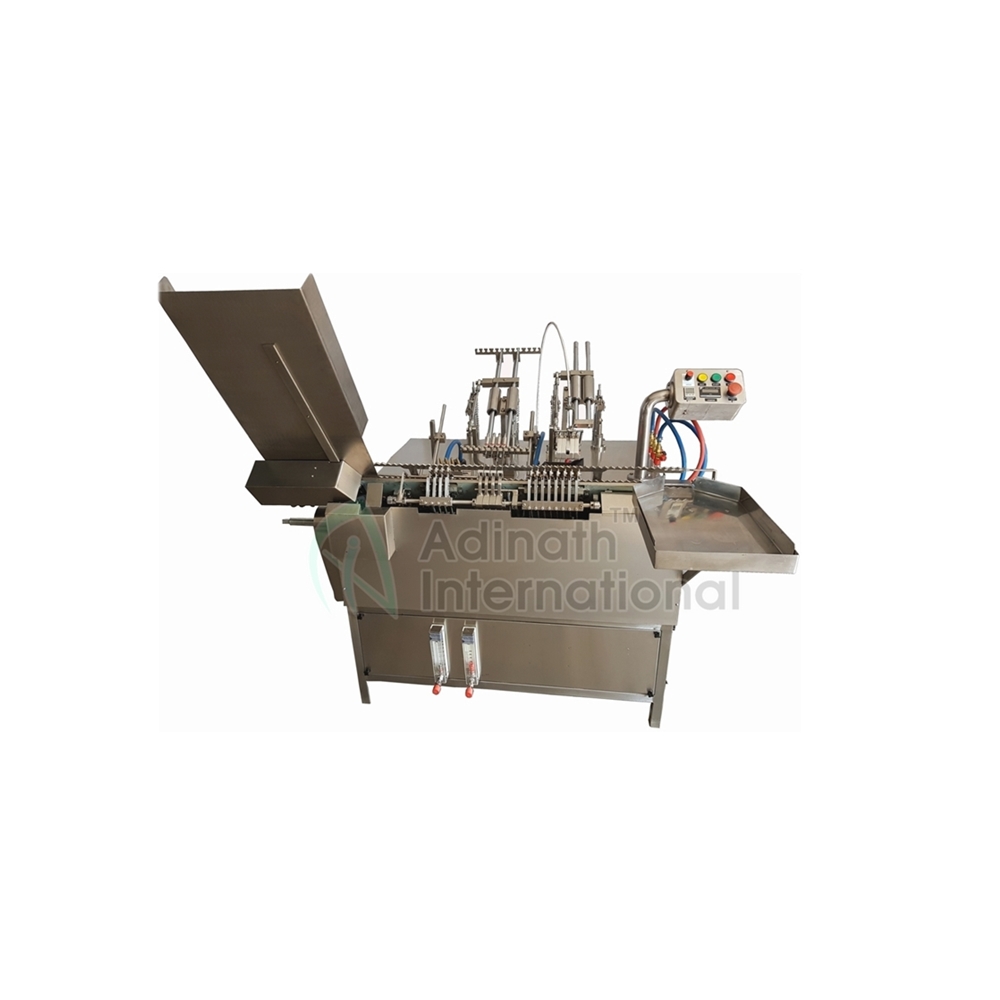

Single Head Ampoule Filling and Sealing Machine

Single Head Ampoule Filling and Sealing Machine

Single Head Ampoule Filling and Sealing Machine designed to give a solution for pharmaceutical, Biotech, Chemical and Cosmetic industry to fill a range of liquids with viscosities from free flowing to heavy Oils. Built on principle of slant travel of ampoules while filling and sealing, to take care of vide variation of ampoule neck dimensions, thicknesses of available standard ampoules. Our machine model AI-AFSM 1 can fill different type of containers like: ampoules, vials, glass tubes, onion skin tubes and many others.
The Filling unit built on S. S. Square pipe frame and totally encompassed with S. S. Coverings, in pleasing matt finish, Further, the large opening available at the bottom side for ease of absolute cleaning.
The pendant type electrical control panel is lifted from machine for ease of operation and safety.

Salient Features of Single Head Ampoule Filling Sealing Machine
  • Compact GMP model
  • All contact parts made from high quality Stainless Steel 316 & other Non-contact parts made from Stainless Steel 304
  • Minimum change over parts from 1ml to 20ml ampoule size
  • “No Ampoule – No Filling” system
  • Ampoule neck centering during gas flushing and filling operations
  • Possibility of nitrogen gas flushing before, during and after filling
  • Full accessibility allows easy maintenance
  • Machine equipped with pre-warming station
  • Minimum change over time, little maintenance & easy cleaning

Process Operation of Single Head Ampoule Filler Sealer Machine
The sterilized ampoule tray directly loaded in to slant hopper of the unit. The Synchronized star wheel delivers ampoules, one by one on moving eccentric ampoule rack in single.
During the stoppage of rack sequentially pre-gassing, filling, post gassing, pre-heating and final sealing is achieved.

Technical Specification of Ampoule Filling Sealing Machine
Model No. AI-AFS 1
No. of Head Single
Ampoule Filling Range 1 ml to 20 ml
Production Output 15 to 30 ampoules/minute
Filling Accuracy ± 1%
Require Gas for Sealing LPG & Oxygen (O₂)
Nitrogen Flushing Pre-& Post Nitrogen Flushing Available
Power Specification 0.5 H. P
Electrical Characteristics 230 Volts, Single Phase, 50 Hertz, 4 Wire System
Contact Parts Made from Stainless Steel 316L
Non-Contact Parts Made from Stainless Steel 304
Overall Dimension 915mm (L) x 610mm (W) x 965mm (H)
* Specification offered is for reference purpose only.
