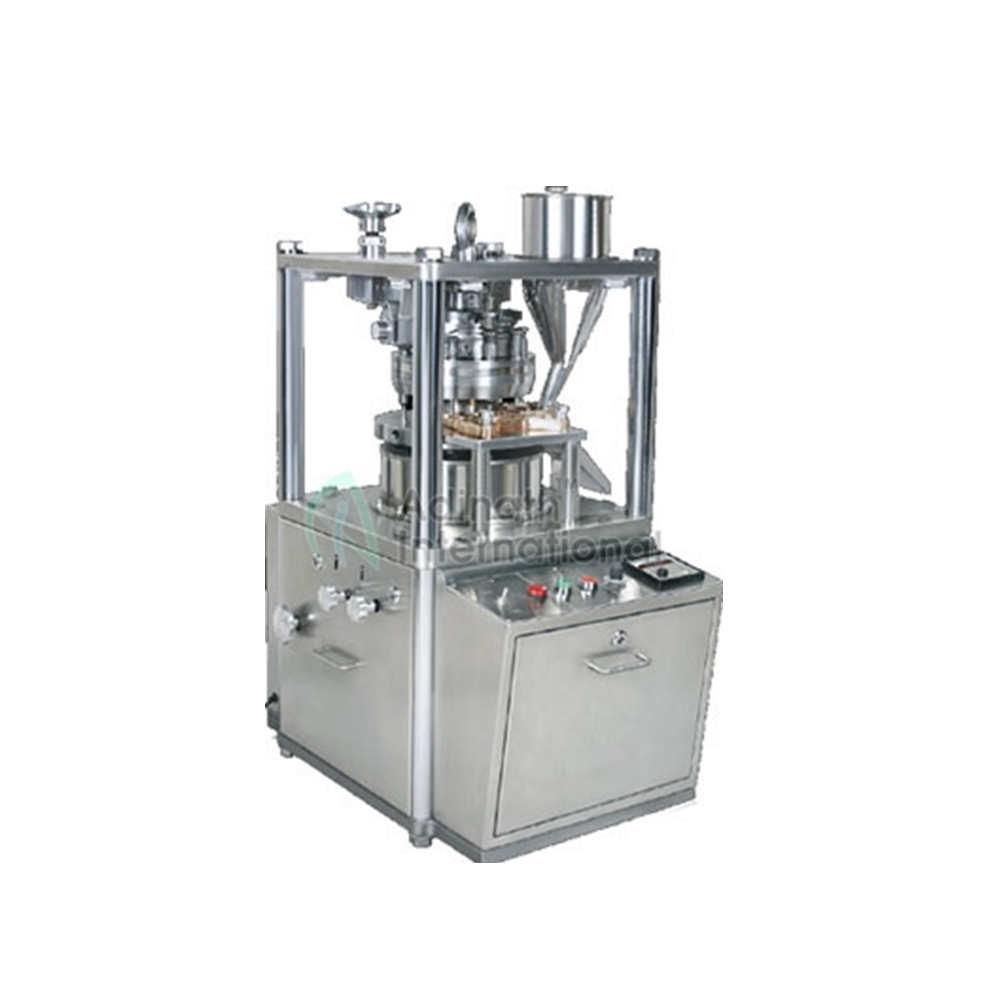

Single Sided Rotary Tablet Press Machine
GMP model AI-ST Single Sided Rotary Tablet Press Machine is an entry level tablet press. It is specially designed for the small production batches. This machine model is suitable for a variety of applications in pharmaceutical and other industries like food, chemical, naphthalene, confectionery etc.
The suitable model can be selected based on the tooling and output requirement from the 16 & 20 stations with the “D”, “D” & “B/D” tooling respectively.
Tablet Press model of 12 station is also available with special tooling and tunnel type can track having max lab Diameter of 40 mm & max depth of fill of 30 mm.
Salient Features of Rotary Tablet Press Machine:
Safety Features of Tablet Press Machine:
Additional Features of Single Rotary Tablet Press Machine:
Technical Specification of Single Side Rotary Tablet Press Machine:
| Model No. | AI-STM12 | AI-STM16 | AI-STM20 |
| Number of Station | 12 | 16 | 20 |
| Type of Tooling | Special Type | ‘D’ | ‘D’ |
| Output | 15,840 Max. | 13,400 – 40,220 | 16,800 – 52,000 |
| Max. Operating Pressure | 12 Ton | 10 Ton | 10 Ton |
| Max. Tablet Diameter | 40 mm | 25 mm | 25 mm |
| Max. Depth of Fill | 30 mm | 20.5 mm | 20.5 mm |
| Upper Punch Entry Penetration | 1.5 – 8 mm | 1.5 – 8 mm | 1.5 – 8 mm |
| Main Electric Motor | 3 H.P.,950 RPM, 415 Volts, 50 Hz | 3 H.P.,1440 RPM, 415 Volts, 50 Hz | 3 H.P.,1440 RPM, 415 Volts, 50 Hz |
| Overall Dimension | 980 mm x 1020 mm x 1820 mm | ||
| Net Weight | 1200 | 1100 | 1100 |
