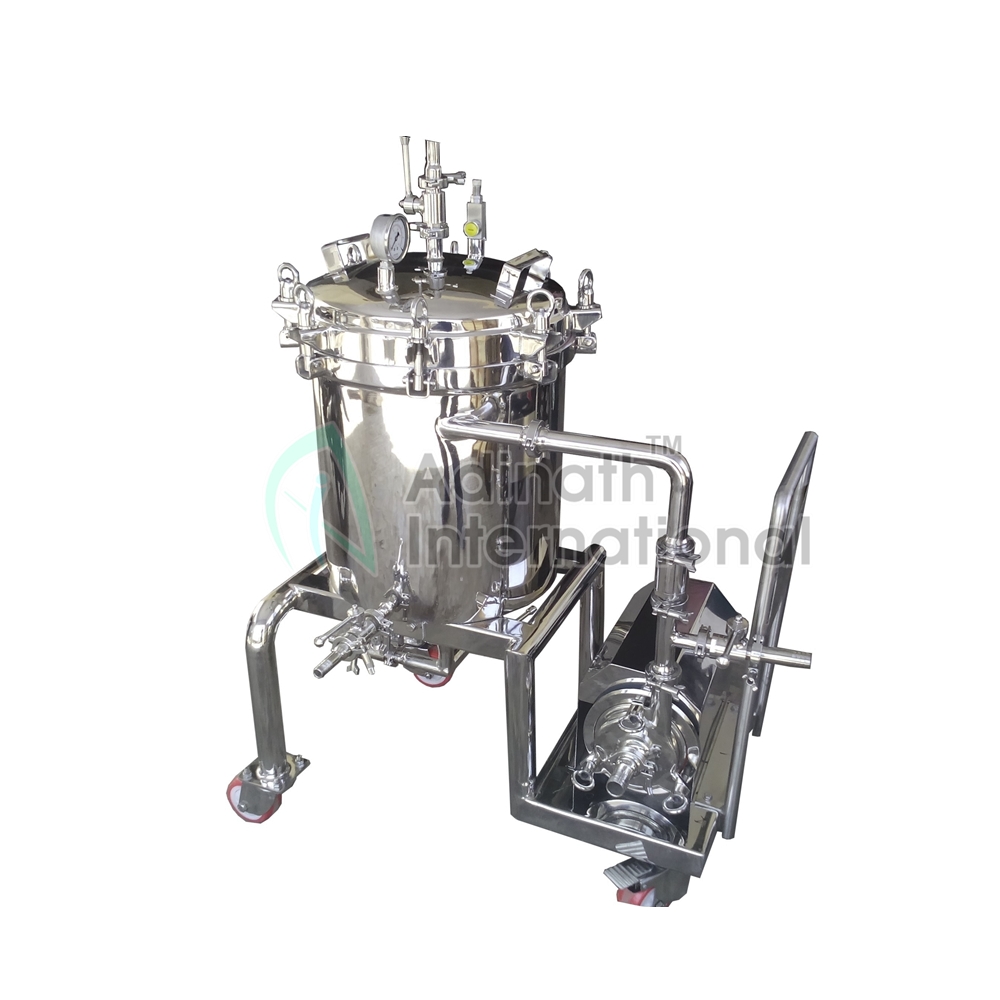

Zero Hold up Filter Press

Zero Hold up Filter Press

Zero Hold up Filter Press is used for achieving clear filtration quality for high value liquids. Meeting GMP & FDA norms, these filter presses can be made available with support of different pumps like Centrifugal, Gear, Lobe and Roto as per the specific process application demands. Further, the cartridge assembly comprises perforated screens, plates, spacers as well as fitter media to provide for optimum process support.

Special Features of Filter Press Machine:
  • Comes with interlocking spacers
  • Unfiltered liquid centrally fed under pressure through bottom inlet that allows liquid to evenly spread on each plate that comes fitted with filter media
  • Meets GMP & FDA norms Provides full batch recovery where no separate scavenging system is required.
  • Provides full batch recovery where no separate scavenging system is required
  • Provides for optimum sealing support that allows filtration of volatile, toxic as well as inflammable products
  • Can be used with any type of filtering media including as single or in combination to achieve required micron efficiency

Applications of Filter Press:
  • Chemical industry
  • Pharmaceutical industry
  • Food industry

Technical Specification of Zero Hold Up Filter Press Machine:
Model Diameter of Plate No. of Plates Filtering Area m2 Cake Holding Capacity (Litres) Capacity
(Litres/hour)
AI-SPM86 8” 6 0.198 4.50 400
AI-SPM88 8” 8 0.254 5.78 500
AI-SPM148 14” 8 0.756 27.00 1500
AI-SPM1410 14” 10 0.924 35.00 1800
AI-SPM188 18”D 8 1.270 51.00 2500
AI-SPM1815 18”S 15 2.270 44.00 4500
AI-APM1812 18”D 12 1.840 78.00 3700
AI-SPM1823 18”S 23 3.400 65.00 6800
AI-SPM2412 24”D 12 3.430 148.00 6700
AI-SPM2423 24”S 23 6.336 120.00 12600
AI-SPM337 33”D 7 4.000 175.00 8000
AI-SPM3314 33”S 14 7.500 210.00 15000
